ID
1330943
$ 234.63
1-2 weeks delivery time
-
+
The Johnson Pump 10-24502-04 circulation pump is a magnetic-driven centrifugal unit built for continuous fresh water and antifreeze circulation in applications such as live fish tanks plus heating and cooling systems. Its seal-less, leak-proof design and IP67-rated 24V DC motor support reliable operation, while the compact build uses a 20 mm (3/4 in) hose connection and delivers high flow performance (listed as 18.5 L/min at 0.1 bar and up to 20 LPM). Durable materials including a thermoplastic body/impeller and a stainless steel shaft, along with a stated 5,000-hour service life and CE marking to listed standards, make it a robust choice where salt water use is not permitted.
- Description
- Ask a Question
-

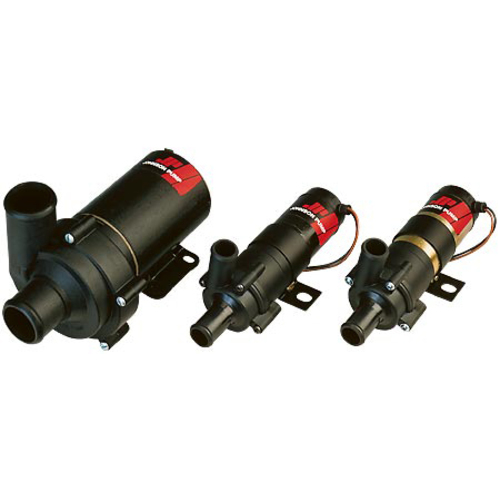

Johnson Pump 10-24502-04 Magnetic-Drive Circulation Unit
The Johnson Pump 10-24502-04 is a compact, magnetic-driven centrifugal water circulating pump intended for efficient circulation of fresh water and antifreeze. Its seal-less construction helps prevent leaks, and the pump is designed for continuous operation in demanding heating and cooling duty cycles.
Application
- Fresh water circulation for live fish tanks
- Heating systems circulation
- Cooling systems circulation
- Heating and cooling applications in vehicles including cars, boats, recreation vehicles, and motorhomes
Not suitable for salt water.
Technical Specifications
Brand Johnson Model 10-24502-04 Series CM10P7 Also Referenced As CM10P7-1 Rated Voltage 24V DC Current 0.6 A Fuse 0.8 A Flow Rate 18.5 L/min at 0.1 bar; 14.5 L/min at 0.15 bar; also listed as 20 LPM (5.3 US GPM) Hose Connection For 20 mm (3/4 in) inner diameter hose Temperature Range (Liquid) -40°C to +100°C Ambient Operating Temperature -40°C to +70°C Max System Pressure 2.5 bar Continuously Rated Yes Dry-Run Tolerance Up to 30 minutes Priming Non-self-priming; requires flooded suction Ingress Protection IP67 Dimensions (L x W x H) 177 mm x 68 mm x 85 mm Weight 0.53 kg Service Life 5,000 hours Article Number 66102450204 EAN 8719182065142
Product Details
- Pump design: Magnetic-driven centrifugal pump
- Construction: Seal-less, leak-proof pump shell
- Materials: Thermoplastic body and impeller (PPA plastic); stainless steel shaft
- Motor: Brush motor with permanently lubricated ball bearings; designed for continuous operation
- Suitable liquids: Fresh water; water/glycol mixture with maximum 60% glycol; antifreeze
- Mounting: Universal bracket for flat surfaces included
- Certifications/marking: CE marked to EN55014, ISO8846, ISO10133, and 72/245/EEC, 95/54EC
Features
- Seal-less design helps prevent leaks
- IP67-rated motor supports water and dust protection
- High flow performance in a compact package
- Built for continuous duty with stated 5,000-hour service life
- High torque for safe starts in difficult conditions
-
