ID
1330942
$ 234.63
1-2 weeks delivery time
-
+
The Johnson Pump 10-24502-03 circulation pump (CM10P7-1) delivers dependable coolant circulation with a heavy-duty, magnetic-drive, seal-less design for leak-resistant operation. A 12/24V DC permanent-magnet, ball-bearing motor with IP67 protection supports continuous duty, handling fresh water or water/glycol mixtures up to 60% glycol across a -40°C to +100°C liquid temperature range. With hose connections stated as Ø16 mm or Ø20 mm (3/4 in) and a maximum flow rate of 18.5 l/min, it combines compact dimensions (177 x 68 x 85 mm) with low weight (0.53 kg) and up to 30 minutes dry-run capability.
- Description
- Ask a Question
-

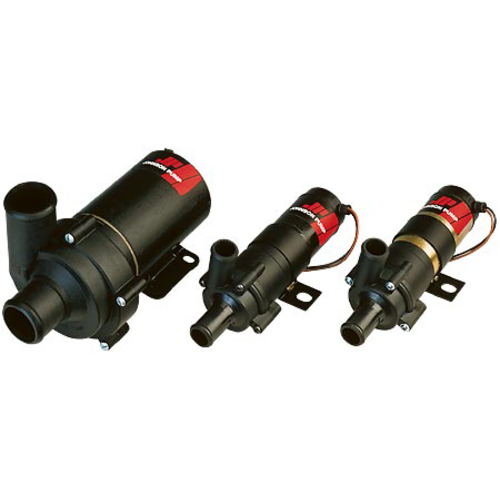

Johnson Pump CM10P7-1 Coolant Circulation Unit (10-24502-03)
The Johnson Pump 10-24502-03 is a compact circulation pump (model CM10P7-1) built for reliable fluid movement in heating and cooling circuits. Its magnetic-drive, seal-less construction supports leak-resistant operation, while an IP67-rated DC motor is intended for continuous service in demanding environments.
Application
- Circulation of water/antifreeze in heating systems for cars
- Circulation of water/antifreeze in heating systems for boats
- Circulation of water/antifreeze in heating systems for recreational vehicles
- Circulation for cooling fresh water/coolants in vehicles
- Heating and cooling systems on boats
- Heating and cooling systems on trains
- Heating and cooling systems on buses
- Heating and cooling systems on commercial vehicles
- Heating and cooling systems on motorhomes
- Direct replacement for many original equipment intercooler circulation pumps
Technical Specifications
Brand Johnson Pump Part Number 10-24502-03 Model CM10P7-1 Operating Voltage 12 V Motor Voltage 12/24 V DC Ingress Protection IP67 Maximum Flow Rate 18.5 l/min Flow Rate 18.5 l/min at 0.1 bar; 14.5 l/min at 0.15 bar Maximum System Pressure 2.5 bar Compatible Liquids Water/glycol mixture (max. 60% glycol); pure fresh water Liquid Temperature Range -40 °C to +100 °C Ambient Operating Temperature Range -40 °C to +70 °C Hose Connection Ø 16 mm or Ø 20 mm (3/4 in); also stated as 19 mm (3/4 in) Thread None Dry Running Max. 30 minutes Power Consumption Max. 14 W (CM10); 27 W (CM30) Amperage 1.2 A Recommended Fuse 1.6 A Dimensions (L x W x H) 177 mm x 68 mm x 85 mm Weight 0.53 kg (1.2 lbs) Shipping Weight 0.90 kg EAN 8719182065142 Article Number 66102450203 Manufacturer Warranty 2 Years
Product Details
- Pump housing material: PPA plastic
- Impeller material: PPA plastic
- Shaft material: Stainless steel
- Motor type: Permanent magnet, ball-bearing motor
- Duty rating: Constructed for continuous operation
- Priming: Non-self-priming; requires flooded suction
- Mounting: Universal holder included for flat mounting
Features
- Heavy-duty, magnetic-driven, seal-less design (leak-resistant)
- Waterproof and dustproof motor protection to IP67
- High torque for safer starts under difficult conditions
- Withstands dry running for up to 30 minutes
- Permanently lubricated ball-bearing brush motor with up to 5000-hour uninterrupted service rating
-
