ID
1330940
$ 234.63
1-2 weeks delivery time
-
+
The Johnson Pump 10-24501-03 CM10P7-1 circulation unit delivers dependable coolant and water/antifreeze flow for heating and cooling systems in marine and vehicle applications. Its heavy-duty, magnetic-driven, seal-less design supports leak-proof operation, while the IP67-rated 12V DC motor is built for continuous running with up to 5000 hours of uninterrupted service rating. With up to 15 l/min at 0.1 bar (12 l/min at 0.15 bar), a Ø16 mm (5/8 in) hose connection, and a compact 177 x 68 x 85 mm footprint, it installs easily using the included universal flat-surface bracket. The pump is non-self-priming (requires flooded suction), withstands dry running up to 30 minutes, handles fresh water or water/glycol mixtures up to 60% glycol, and supports up to 2.5 bar system pressure across demanding temperature ranges.
- Description
- Ask a Question
-

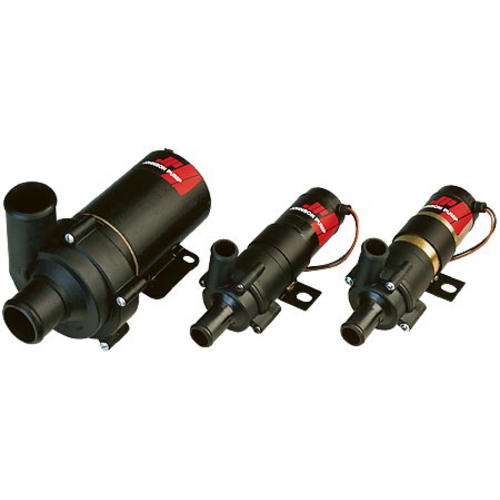

Johnson 10-24501-03 CM10P7-1 Coolant Circulation Pump Unit
The Johnson Pump 10-24501-03 (model CM10P7-1) is a compact, heavy-duty circulation pump developed for heating and cooling circuits. It is intended for circulating water/antifreeze in heating systems and fresh water/coolants in cooling applications, and it can also serve as a direct replacement for many original equipment intercooler circulation pumps.
Application
- Boats
- Trains
- Buses
- Commercial vehicles
- Recreational vehicles
- Motorhomes
- Cars (heating system circulation)
Technical Specifications
Manufacturer Johnson Pump Part Number 10-24501-03 Model CM10P7-1 Article Number 66102450103 EAN 8719182065142 Operating Voltage 12 V DC Flow Rate 15 l/min at 0.1 bar; 12 l/min at 0.15 bar Max System Pressure 2.5 bar Current Draw 1.2 A Recommended Fuse 1.6 A Power Consumption Max 14 W (CM10) Ingress Protection IP67 Hose Connection (This Variant) Ø16 mm (5/8 in) hose inner diameter Hose Connection (CM10 Technical Data) Ø16 mm (5/8 in) or Ø20 mm (3/4 in) Dimensions (L x W x H) 177 mm x 68 mm x 85 mm Dimensions (L x W x H) 17.7 cm x 6.8 cm x 8.5 cm Weight 0.53 kg (1.2 lbs) Shipping Weight 0.90 kg Manufacturer Warranty 2 years
Product Details
- Pump Type: Heavy-duty circulation pump
- Drive/Sealing: Magnetic-driven, seal-less (leak-proof) design
- Priming: Non-self-priming; requires flooded suction
- Dry Running Tolerance: Up to 30 minutes
- Motor: Waterproof and dustproof brushed DC motor; permanently lubricated ball bearing motor; high torque for safe starts under difficult conditions
- Service Rating: Up to 5000 hours uninterrupted service rating
- Materials: Pump housing (PPA plastic), impeller (PPA plastic), shaft (stainless steel)
- Liquid Compatibility: Fresh water or water/glycol mixture (max 60% glycol)
- Liquid Temperature Range: -40°C to +100°C
- Ambient Operating Temperature: -40°C to +70°C
- Mounting: Separate universal bracket for flat surfaces included
Features
- Delivers up to 15 l/min flow for efficient heating and cooling circulation
- IP67 motor protection supports continuous operation in demanding environments
- Seal-less, magnetic-driven construction helps maintain leak-proof performance
- Compact size and included universal flat-surface bracket simplify installation
-
