ID
1330926
$ 391.33
1-2 weeks delivery time
-
+
The Johnson Pump 10-24190-1 circulation pump unit (CO90P5-1) is built for continuous-duty fluid circulation with a 38 mm hose connection and a flow output up to 100 L/min. PA66 thermoplastic housing and impeller, a stainless steel shaft, and a mechanical seal support durable operation with water or water/glycol mixtures up to 60% glycol, across -30 °C to +100 °C liquid temperature. Designed for a maximum system pressure of 2.0 bar, it is non-self-priming, cannot run dry, and mounts via a universal flat mounting bracket for versatile installation in heating and cooling circuits.
- Description
- Ask a Question
-

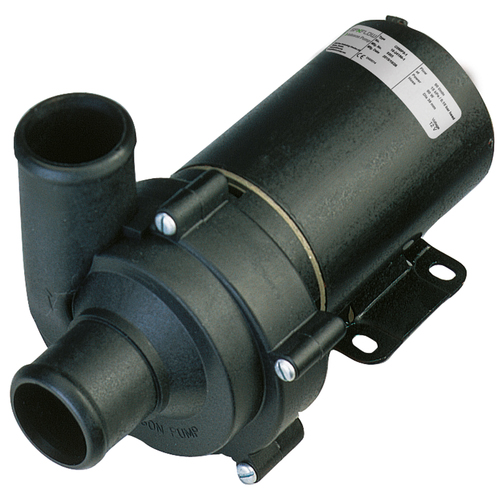

Johnson CO90P5-1 Circulation Unit 10-24190-1 With 38 mm Connection
The Johnson Pump 10-24190-1 CO90-series circulation pump is engineered for continuous circulation in heating and cooling loops. With a compact body, flat-surface mounting bracket, and a 38 mm hose connection, it suits a wide range of vehicle and marine installations where dependable coolant or fresh-water flow is required.
Application
- Circulation of water/antifreeze in heating systems for cars
- Circulation of water/antifreeze in heating systems for boats
- Circulation of water/antifreeze in heating systems for recreational vehicles
- Circulation for cooling fresh water and coolants in vehicles
- Heating and cooling systems on boats, trains, buses, commercial vehicles, recreational vehicles, and motorhomes (as stated)
Technical Specifications
Model / Series CO90P5-1 (CO90) Part Number 10-24190-1 Article Number 6610241901 EAN 8719182062868 Rated Voltage 12 V / 24 V DC (also listed as 12 V nominal, 13.6 V) Protection Rating IP31 (also listed as IP67) Power Consumption 100 W Current Draw 7.4 A Recommended Fuse 10 A Flow Rate 100 L/min at 0.1 bar; 67 L/min at 0.25 bar Maximum System Pressure 2.0 bar Liquid Temperature Range -30 °C to +100 °C Ambient Temperature Range -30 °C to +70 °C Permitted Liquids Fresh water; water/glycol mixtures (max 60% glycol) Hose Connection 38 mm (1-1/2 in) hose inner diameter Dry Running No (cannot run dry) Priming Non-self-priming (requires flooded suction) Mounting Universal holder; flat mounting; bracket for flat surfaces included Dimensions (L × W × H) 211 mm × 117 mm × 110 mm (from base plate); total height 116 mm Weight 1.75 kg Shipping Weight 2.30 kg
Product Details
- Pump housing: PA66 thermoplastic
- Impeller: PA66 thermoplastic
- Shaft: Stainless steel
- Shaft seal: Mechanical seal
- Motor design: Permanent magnet, ball-bearing brushed motor; designed for continuous operation
- Motor operating life: Approximately 3,000 hours (as stated)
Features
- Continuous-duty circulation performance for heating and cooling circuits
- 38 mm hose connection supports straightforward integration into existing plumbing
- Handles water/glycol mixtures up to 60% glycol across a wide liquid temperature range
- Designed for systems up to 2.0 bar maximum pressure
- Supplied with a bracket for flat-surface mounting
-
