ID
1330929
$ 692.95
1-2 weeks delivery time
-
+
The Johnson Pump 10-24210-1 impeller pump unit (model F5B-3000) delivers self priming, flexible pumping performance for marine and industrial fluid handling. Its bronze construction, stainless steel shaft, permanently lubricated double ball bearings, and mechanical seal are built to reduce wear, while 3/4 inch BSP internal threaded ports and foot mounting make installation straightforward. With a 1/1 cam version, spline drive impeller hub, single flat drive shaft end (17 mm / 16 mm), and an included MC97 impeller, it supports demanding duties such as engine cooling, bilge pumping, deck washing, wash down, and tank emptying, providing up to 46 liters per minute at 2000 rpm and a compact 195 x 106 x 88 mm footprint.
- Description
- Ask a Question
-

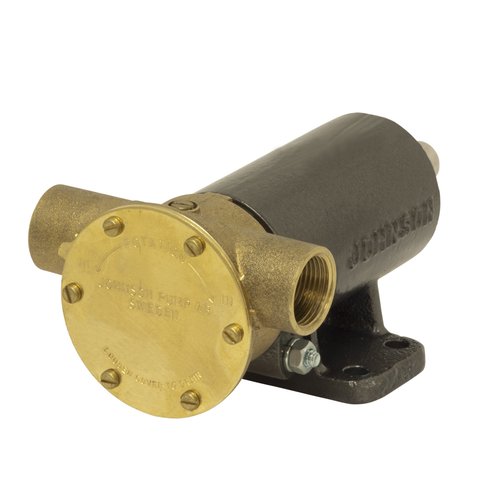

Johnson Pump 10-24210-1 Flexible Impeller Pump Unit
The Johnson Pump 10-24210-1 (F5B-3000) is a pedestal mounted, self priming flexible impeller pump designed for dependable circulation and transfer in marine and industrial environments. A bronze pump body, stainless steel shaft, and mechanical seal help support long service life, while the housing includes a connection for a vacuum switch (optionally available) to expand system integration options.
Application
- Engine cooling
- Bilge pumping
- Deck washing
- Wash down
- Emptying holding tanks (use a different impeller if necessary)
- Liquid circulation and transfer
- Emptying tanks
- Sump drainage
- Handling solids in suspension (use a different impeller if necessary)
Compatibility
- Bedford 220
- Drinkward Engines OM 314
- Mercedes OM 314
- Volvo Penta TAMD 60B
- Volvo Penta TAMD 60C
Technical Specifications
Part Number 10-24210-1 Article Number 6610242101 EAN 8719182063049 Model F5B-3000, Base Mount Pump Type Self priming flexible impeller pump Cam Version 1/1 Material Bronze Connection 3/4 inch BSP internal threaded ports Maximum Flow Rate 46 liters per minute at 2000 rpm Dimensions (L x W x H) 195 mm x 106 mm x 88 mm Weight 2.9 kg (6.5 lbs) Shipping Weight 3.60 kg Shaft Dimension 17 mm diameter Drive Single flat drive; single flattened shaft (17 mm / 16 mm) Impeller Hub Spline drive
Product Details
- Mounting type: Foot mounting (pedestal mounted)
- Shaft: Stainless steel
- Bearings: Two permanently lubricated double ball bearings
- Seal: Mechanical seal
- Cover: Stainless steel cover
- Vacuum switch provision: Housing connection available (vacuum switch optionally available)
- Included impeller: MC97
- Impeller reference: 66091027B/B9
- Service kit: 09-45583
- Impeller kit: 09-1027B-1
- Alternative part: Johnson Pump 10-24210-7 (same pump, except for the internal thread connection)
Features
- Self priming operation supports reliable suction and startup in demanding installations
- Bronze pump construction is suited for marine and industrial environments
- Mechanical seal and double ball bearings help reduce wear and support durability
- Compact size and 3/4 inch BSP internal threaded ports simplify integration into existing pipework
-
