ID
1330927
$ 391.33
1-2 weeks delivery time
-
+
The Johnson Pump 10-24190-2 circulation pump unit delivers up to 100 litres per minute for heating and cooling systems in cars, boats, and recreational vehicles. A brushed 24V DC motor (nominal voltage 27.2V) with a 38 mm hose connection supports dependable circulation of fresh water or water and glycol mixtures (up to 60% glycol) across a -30°C to +100°C liquid temperature range. The design uses a mechanical seal, is non-self-priming with flooded suction requirements, and includes a flat-surface mounting bracket for flexible installation.
- Description
- Ask a Question
-

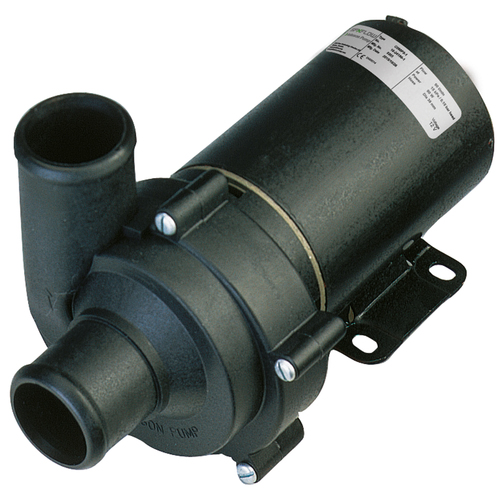

Johnson Pump 10-24190-2 24V CO90P5-1 Circulation Unit
The Johnson Pump 10-24190-2 is a heavy-duty circulation pump built to move coolant through heating and cooling circuits. With a compact form factor, universal mounting support, and a high flow capability, it is well-suited for continuous circulation duties where consistent temperature control and reliable fluid movement matter.
Application
- Circulation of water and antifreeze in heating systems
- Circulation for cooling fresh water and coolants in vehicles
- Heating and cooling systems in cars
- Heating and cooling systems in boats
- Heating and cooling systems in recreational vehicles
- Heating and cooling systems in trains
- Heating and cooling systems in buses
- Heating and cooling systems in commercial vehicles
- Heating and cooling systems in motorhomes
- Can serve as a direct replacement for many original equipment intercooler circulation pumps
Compatibility
- Fresh water
- Water and glycol mixture (maximum 60% glycol)
Technical Specifications
Part Number 10-24190-2 Model CO90P5-1 Article Number 6610241902 EAN 8719182062868 Type Circulation pump Motor Brushed 24V DC Nominal Voltage 27.2 V Power Consumption 100 W Amperage 4.4 A Recommended Fuse 6 A Flow Rate 100 L/min at 0.1 bar; 67 L/min at 0.25 bar Maximum System Pressure 2.0 bar Hose Connection Ø 38 mm (1-1/2 in hose inner diameter) Liquid Temperature Range -30°C to +100°C Ambient Operating Temperature -30°C to +70°C Priming Non-self-priming; requires flooded suction Dry Running No (cannot run dry) Seal Type Mechanical seal Dimensions (L × W × H) 211 mm × 117 mm × 110 mm (height from base plate); total height 116 mm Weight 1.75 kg Shipping Weight 2.30 kg Protection Rating (As Stated) IP67 (waterproof and dustproof) Motor Protection (Technical Data) Protected according to IP31
Product Details
- Pump housing: PA66 thermoplastic
- Impeller: PA66 thermoplastic
- Shaft: Stainless steel
- Motor design: Permanently lubricated, ball-bearing brushed motor; designed for approximately 3,000 hours of operating time
- Mounting: Bracket for flat surfaces included; universal holder for flat mounting
- Product portfolio: Circulation pumps
Features
- High output circulation performance up to 100 L/min for heating and cooling loops
- Handles fresh water and water and glycol mixtures (maximum 60% glycol)
- Designed for continuous operation with a mechanical seal
- Non-self-priming layout supports flooded-suction installations where the pump remains supplied with liquid
-
