ID
1366662
$ 760.61
1-2 weeks delivery time
-
+
The Johnson Pump 10-24230-3 F5B-9 bronze impeller pump delivers reliable, self-priming cooling-water circulation and is frequently used as a seawater pump on specific engine installations. It features a Spline Drive impeller hub, a full cam (1/1) design, and a bronze pump body with a threaded mounting point for a torque arm. Connection options are listed as 1-1/4 inch hose connection and 32 mm hose connection, and the pump is specified with crankshaft pulley drive/mounting as well as flange mounting in the provided data. Supplied information also notes inclusion of an MC97 impeller and references service and impeller kits for maintenance.
- Description
- Ask a Question
-

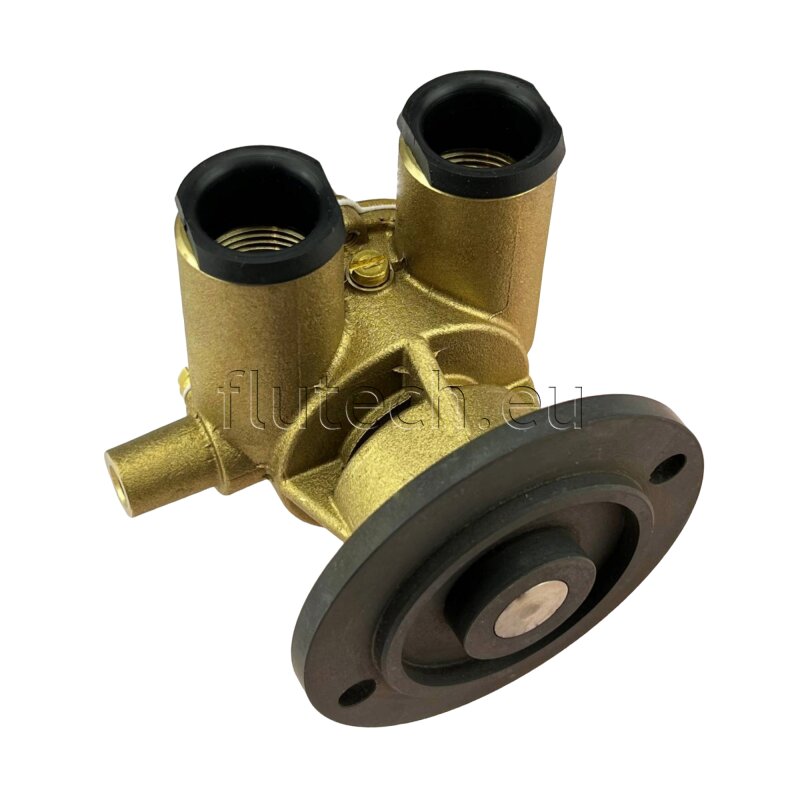

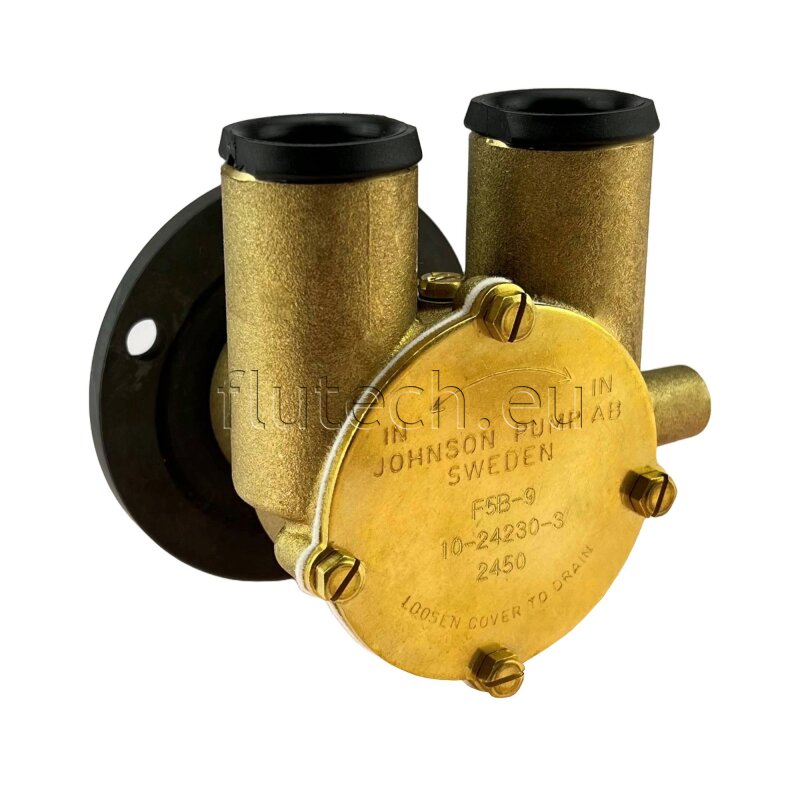

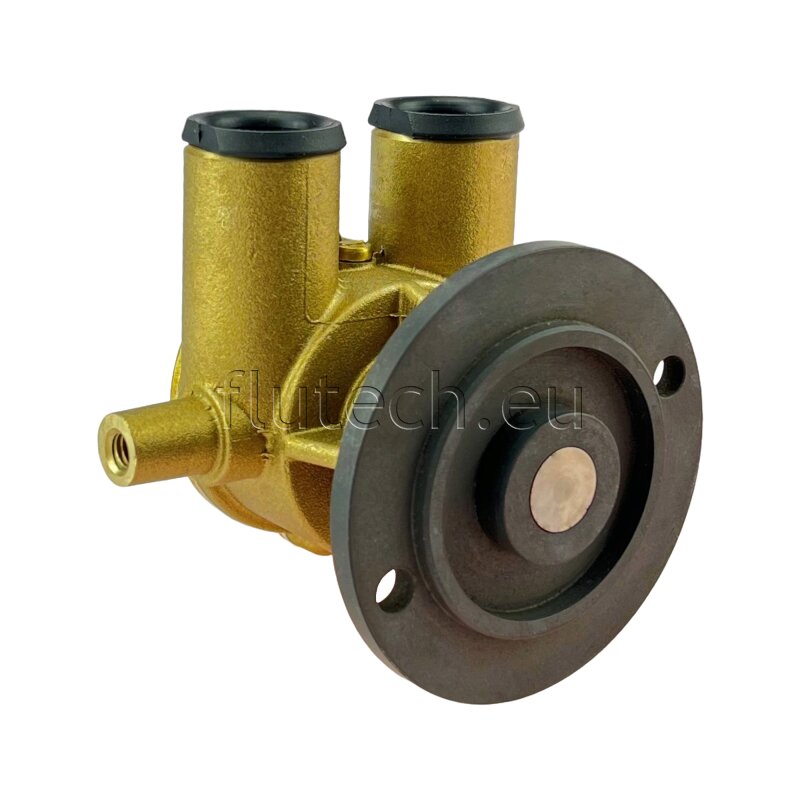

Johnson Pump 10-24230-3 F5B-9 Bronze Impeller Cooling Water Pump
The Johnson Pump 10-24230-3 is a bronze impeller pump in size F5B-9, built to provide efficient, self-priming cooling-water flow. Its Spline Drive impeller hub and robust bronze construction support dependable operation, and it is frequently used as a seawater pump on selected engine and marine power installations.
Application
- Self-priming cooling water pump (size F5)
- Frequently used as a seawater pump on CMDHP80
- Frequently used as a seawater pump on Mermaid Marine FSE 425
- Frequently used as a seawater pump on Watermota Sea Horse 100
- Frequently used as a seawater pump on Watermota Sea Horse 130
Compatibility
- Alternative to Johnson Pump 10-24230-1 (without adapter)
- Alternative to Johnson Pump 10-24230-3
- Alternative to Johnson Pump 10-24230-5
Technical Specifications
Brand SPX Johnson Pump; Johnson Pump Part Number 10-24230-3 Product Portfolio Impeller pumps; Cooling water pumps Pump Size F5 Model F5B-9 Material Bronze Impeller Hub Spline Drive Cam Design 1/1 (full) Connections 1-1/4 inch hose connection; 32 mm hose connection Mounting Type (Listed) Flange; Crankshaft Pulley; Pulley mount Drive / Shaft End (Listed) Crankshaft; Pulley Included Impeller MC97 impeller Shipping Weight (Listed) 0.40 kg; 2.00 kg
Product Details
- Pump body: Bronze pump body with threaded mounting point for torque arm
- Drive options (listed): Drive via crankshaft pulley mounting or crankshaft vibration damper mounting
- Common description: Bronze Impeller Pump F5B-9, pulley mount, 32 mm hose connections, 1/1, MC97
Features
- Self-priming design for cooling-water circulation
- Spline Drive impeller hub for positive drive engagement
- Bronze construction for durable service
- Full cam (1/1) design
Service Parts (Referenced)
- Service kit: 09-45808
- Impeller kit: 09-1027B-1
-
