ID
1330925
$ 1,308.98
1-2 weeks delivery time
-
+
The Johnson Pump 10-24188-2 F5B-19 self-priming impeller pump delivers up to 55 l/min from a 24V DC motor for versatile onboard duties such as bilge pumping, deck cleaning, water circulation, fire suppression, and harbor refuelling operations. A bronze housing with a mechanical seal and an oil-resistant nitrile impeller (included) supports reliable service in demanding marine use, while self-priming up to 4 m (under perfect conditions) and a maximum head of 7 m help maintain dependable transfer performance. It features a 3/4" BSP female connection, draws 15.3 A with a recommended 25 A fuse, and is rated for up to 1 hour continuous operation at 1 bar pressure.
- Description
- Ask a Question
-

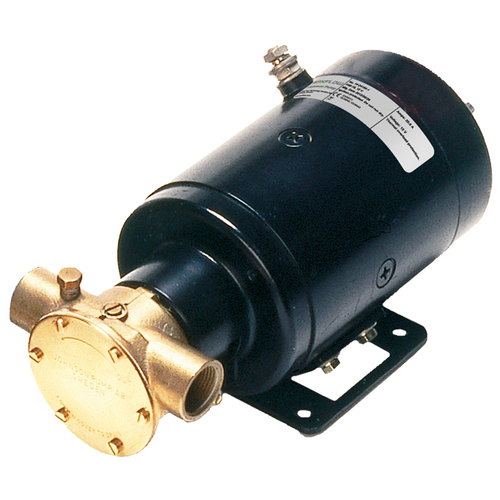

Johnson Pump 10-24188-2 F5B-19 24V Self-Priming Impeller Transfer Unit
The Johnson Pump F5B-19 is a high-performance, flexible impeller pump built for demanding marine duties where dependable transfer and quick priming matter. Driven by a 24V DC motor, it supports a wide range of onboard and harbor-side tasks while combining durable construction with service-friendly component options.
Application
- Bilge pumping
- Deck cleaning
- Deck wash
- Water circulation
- Fire suppression
- Refuelling operations in the harbor (oil and diesel)
Technical Specifications
Brand Johnson Pump Part Number 10-24188-2 Model F5B-19 Article Number 6610241882 EAN Number 8719182062448 Voltage 24V DC Output Up to 55 l/min (free flow) Output at Head Approx. 49 l/min at 3 m head Self-Priming Capacity Up to 4 m under perfect conditions Maximum Head 7 m Amperage 15.3 A Fuse Size 25 A Connection 3/4" BSP female thread (fittings not included) Housing Material Bronze Shaft Seal Mechanical seal Impeller Material Oil-resistant nitrile Dimensions (L x W x H) 258 mm x 131 mm x 120 mm Dimensions (Length) 258 mm - 10.15' Dimensions (Width) 131 mm - 5.15' Dimensions (Height) 120 mm - 4.72' Weight 8 kg (17.5 lbs) Shipping Weight 9.50 kg Max Continuous Operation 1 hour at 1 bar pressure Product Portfolio General Purpose Pumps; Electric impeller pumps
Product Details
- Pump type: Self-priming flexible impeller pump
- Construction: Bronze pump head with mechanical seal
- Impeller included: Nitrile impeller(s) included
- Motor protection: Built-in thermal overload
- Internal components: Wear plate and 1/1 cam
Features
- Handles multiple onboard tasks, including bilge, deck wash, circulation, fire pump, and refuelling duties
- Self-priming capability supports faster pickup under suitable conditions
- Bronze housing and oil-resistant nitrile impeller support durability in demanding service
Service and Spare Parts
- Service kit: 09-45584
- Impeller kit: 09-1027B-9
- Replacement impeller: Nitrile oil-resistant impeller
-
