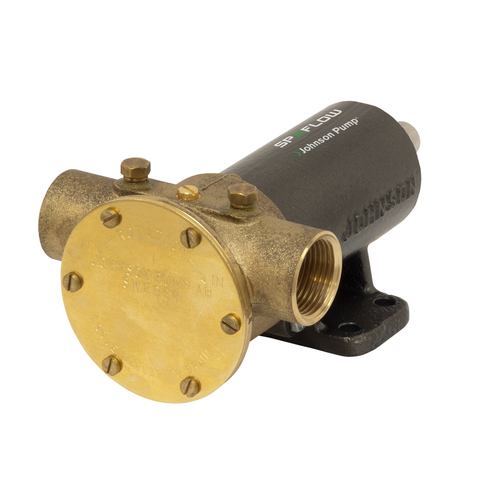

Johnson Pump 10-24209-1 - F7B-3000 Flexible Impeller Pump

ID 1330928

$ 766.36

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump 10-24209-1 F7B-3000 flexible impeller pump assembly delivers high-performance, self-priming circulation and transfer for demanding marine duties such as engine cooling water, bilge pumping, deck wash, and emergency/fire pumping. Its bronze pump housing, stainless steel shaft, separate bearing housing with permanently lubricated double ball bearings, and mechanical seal help reduce wear for extended service life. Pedestal/foot mounting and 1" BSP internal threaded ports simplify installation, while the included MC97 impeller and easily replaceable wearing parts with available service kits support fast maintenance; maximum capacity is listed at 107 l/min at 2000 rpm.

Description
Ask a Question

Johnson Pump 10-24209-1 F7B-3000 Flexible Impeller Pump Unit

The Johnson Pump F7B-3000 (10-24209-1) is a heavy-duty, self-priming flexible impeller pump intended for a wide range of marine and industrial liquid-handling tasks. Built around a bronze housing with a stainless steel shaft and a mechanical seal, it is designed to provide strong performance while minimizing wear through a separate bearing housing arrangement.

Application

Cooling water pump applications
Bilge pumping
Deck cleaning
Deck wash / wash-down
Emergency pumping
Fire control / fire pump use
Holding tank emptying (use a different impeller if necessary)
Industrial use: liquid circulation and transfer
Industrial use: tank emptying and sump drainage
Industrial use: handling solids in suspension (use a different impeller if necessary)

Compatibility

Commonly found on engines including:

Ailsa Craig RAB6
Bedford 330
DAF DT 615MY
DAF DT 575MY
Drinkward OM 352A
Drinkward OM 352
Mercedes OM 352A
Mercedes OM 352
Mercedes OM 355
Mercedes OM 360
Mercedes OM401
Mercedes OM402

Technical Specifications

Brand	Johnson Pump
Model	F7B-3000
Part Number	10-24209-1
Article Number	6610242091
EAN	8719182063049
Pump Type	Self-Priming Flexible Impeller Pump
Mounting Type	Foot Mounting (Pedestal Mounted)
Connection	1" BSP (Internal Threaded Ports)
Flow Rate	Max. 107 l/min at 2000 rpm
Housing Material	Bronze
Shaft Material	Stainless Steel
Seal Type	Mechanical Seal
Bearings	Two Permanently Lubricated Double Ball Bearings
Base / Socket Material	Cast Iron
Cam Version	1/1 (Full Or Partial Comb Listed)
Drive / Shaft End	Single Flat Drive (Drive Via Single Flattened Shaft 17 mm / 16 mm)
Drive Shaft Diameter	17 mm
Shaft Diameter (Listed)	16 mm
Impeller Included	MC97
Impeller Part Number (Listed)	09-1028B-1
Optional Impeller (Listed)	09-1028B-9 (Available on Request)
Impeller Reference (Listed)	66091028B/B9
Impeller Hub	Spline Drive
Dimensions (L x W x H)	213 mm x 120 mm x 93 mm
Weight	3.1 kg (6.9 lbs)
Shipping Weight (Listed)	4.50 kg

Product Details

Construction: Flexible impeller pump with separate bearing housing and shaft seal to reduce wear and support longer service life
Vacuum Switch Connection: Pump housing includes a connection; vacuum switch is available as an accessory
Serviceability: Wearing parts are designed to be easily replaced; service kits are available for standard models
Alternative Pump Reference: Alternative to Johnson Pump 10-24209-7 (same pump, except for the internal thread connection)
Listed Service Kit: 09-47425
Listed Impeller Kit: 09-1028BT-1
Impeller Options: Pump with nitrile impeller available on request; pump with alternative impeller available on request

Features

Self-priming flexible impeller design for versatile marine and industrial liquid handling
Bronze housing and stainless steel shaft for durable operation
Mechanical seal and permanently lubricated double ball bearings to help minimize wear
1" BSP internal threaded ports for straightforward plumbing integration
Compact footprint (213 mm x 120 mm x 93 mm) to suit a wide range of installations
