The Johnson Pump 10-24188-1 self-priming impeller pump unit (model F5B-19) delivers up to 55 l/min from a 12V DC motor for demanding marine duties including bilge pumping, deck cleaning, water circulation, and harbor refueling operations. A bronze housing and mechanical seal support durability, while the included oil-resistant nitrile impeller helps maintain reliable pumping performance. It uses a 3/4" BSP connection and comes in a compact 258 mm x 131 mm x 120 mm form factor with a pump weight of 8 kg (17.5 lbs), plus listed shipping weight of 9.50 kg, and electrical data of 29.8 A with a 50 A fuse recommendation.
- Description
- Ask a Question
-

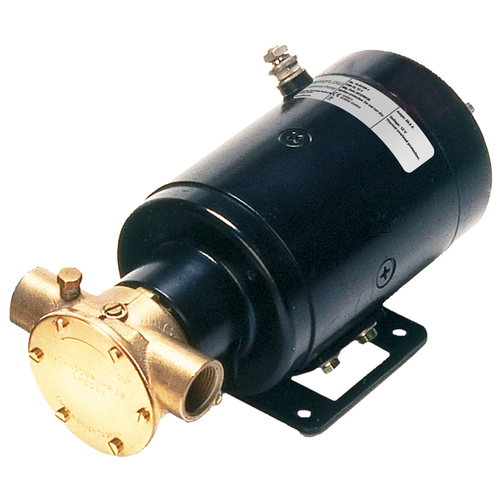

Johnson Pump 10-24188-1 F5B-19 12V Flexible Impeller Pump Unit
Built for tough marine and commercial duties, the Johnson Pump 10-24188-1 is a self-priming flexible impeller pump (model F5B-19) driven by a 12V DC motor. It is engineered for fast, practical fluid handling on board—supporting everyday service tasks as well as high-demand washdown and transfer work.
Application
- Bilge pumping
- Deck cleaning
- Deck washing
- Fire pump use
- Water circulation
- Refueling pumps for oil
- Refueling pumps for diesel
- Refueling operations in the harbor
- Vacuum switch connections
Technical Specifications
Brand Johnson Pump Part Number 10-24188-1 Model F5B-19 Voltage 12V DC Flow Rate Up to 55 l/min (free flow); approx. 49 l/min at 3 m head Self-Priming Up to 4 m under perfect conditions Maximum Head Should not exceed 7 m Continuous Operation Up to 0.5 bar Short Bursts 1 bar Motor Maximum Run Time 1 hour at 1 bar pressure Current Draw 29.8 A Recommended Fuse Size 50 A Connection 3/4" BSP Housing Material Bronze Shaft Seal Mechanical seal (mechanical seal ring) Dimensions (L x W x H) 258 mm x 131 mm x 120 mm Dimensions (L x W x H) 25.8 cm x 13.1 cm x 12.0 cm Pump Weight 8 kg (17.5 lbs) Shipping Weight 9.50 kg EAN 8719182062448 Article Number 6610241881
Product Details
- Pump type: Self-priming flexible impeller pump with 12V DC motor
- Impeller included: Nitrile impeller
- Impeller reference: 09-1027B-9
- Wear components: Wear plate and 1/1 cam (as listed)
- Motor protection: Built-in thermal overload
- Connections: 3/4" BSP female thread for corresponding fittings (not included)
- Replaces: Johnson 10-24002-1 F5B-12V pumps
- Service kit (order reference): 09-45584
- Impeller kit (order reference): 09-1027B-9
- Product portfolio: General purpose pumps; electric impeller pumps
Features
- Heavy-duty motor designed to provide long service life even under heavy use
- Bronze pump head supports durability in demanding marine and commercial environments
- Designed for reliable washdown and transfer work with specified operation limits
-
