The Johnson Pump Aqua Jet Flow Master 5.0 five-chamber diaphragm pressure system is built to pressurize water in closed installations on boats and recreational vehicles, using a digital controller that smoothly adjusts flow to demand for consistent performance across one or multiple taps. This 12V/150W unit delivers 19 l/min (5.0 GPM) capacity with 3.5 bar (50 psi) cut-off pressure, supports mounting without an accumulator tank, and adds protection features including built-in thermal protection, integrated pressure switching, self-priming up to 2.5 m, and run-dry capability. A durable Nylon/Polypropylene body with Santoprene and EPDM components, compact 239 x 209 x 113 mm dimensions, 2 kg weight, 15A fuse rating, and included inlet strainer support reliable installation in demanding onboard environments.
- Description
- Ask a Question
-

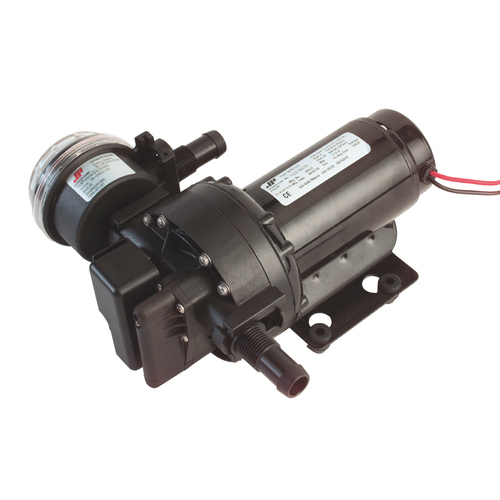

Johnson Pump 10-13329-03 Aqua Jet Flow Master 5.0 Variable-Flow Water Pressure Unit
The Johnson Pump Aqua Jet Flow Master 5.0 is a compact, five-chamber positive-displacement diaphragm pump system designed to pressurize water in closed systems such as boats and recreational vehicles. Its digital controller automatically adjusts motor speed to match demand, helping maintain a smooth, even water flow even when multiple taps are used. The variable-flow concept also allows installation without an accumulator tank.
Application
- Pressurizing water in closed systems on boats
- Pressurizing water in closed systems on recreational vehicles
Technical Specifications
Brand Johnson Pump Part Number (12V) 10-13329-03 Alternative Part Number (24V) 10-13329-04 Article Number 66101332903 EAN 8719182058007 Product Portfolio Water Pressure Systems Model WPS FM 5.0 Type Five-Chamber Diaphragm Pump (Positive Displacement) Rated Voltage 12 V Motor WPS 5.0, 150 W (with built-in thermal protection) Capacity 19 l/min (5.0 GPM) Maximum Output (Listed) 19.4 l/min (5 GPM) Cut-Off / Switch-Off Pressure (Listed) 3.5 bar / 50 psi Pressure Switch Settings (Listed) Cuts In 1.7 bar (25 psi); Cuts Out 4.1 bar (60 psi) Fuse Size (12V) 15 A Fuse Size (24V) 8 A Amperage (Listed) 12 A Dimensions 239 mm (L) x 209 mm (W) x 113 mm (H) Weight 2 kg Shipping Weight 4.00 kg
Product Details
- Variable flow control: Motor speed increases as higher flow is required
- Accumulator tank required: No
- Self-priming: Yes (up to 2.5 m listed)
- Run-dry safe: Yes
- Integrated pressure switch: Yes
- Body material: Nylon/Polypropylene
- Valve materials: Santoprene/EPDM
- Diaphragm material: Santoprene
- Warranty: 3 years
Connections
- 3/8" BSP / hose 1/2"
- 1/2" BSP / hose 3/4"
- Snap-in ports: 2 x 1/2" BSP thread / 19 mm (3/4") hose barb
- Snap-in ports: 2 x 3/8" BSP thread / 13 mm (1/2") hose barb
Features
- Digital controller delivers smooth, demand-based flow for consistent pressure at one or multiple taps
- Variable-flow design supports installation without an accumulator tank
- Built-in thermal protection and run-dry capability help protect the motor during demanding operation
- Inlet strainer included in the box (40 mesh listed)
-
