ID
1330939
$ 340.29
1-2 weeks delivery time
-
+
The Johnson Pump 10-24453-05 TA3P10-19 macerator pump delivers effective toilet wastewater handling by shredding waste with rotating cutter blades before pumping to or from the tank. A 24V DC electric drive with built-in thermal protection supports dependable operation, while the nitrile impeller and stainless steel shaft are specified for durability. The pump is designed to be mounted close to the tank or bowl outlet, uses 38 mm inlet and 25.4 mm outlet connections, and is intended for use with unbleached toilet paper.
- Description
- Ask a Question
-

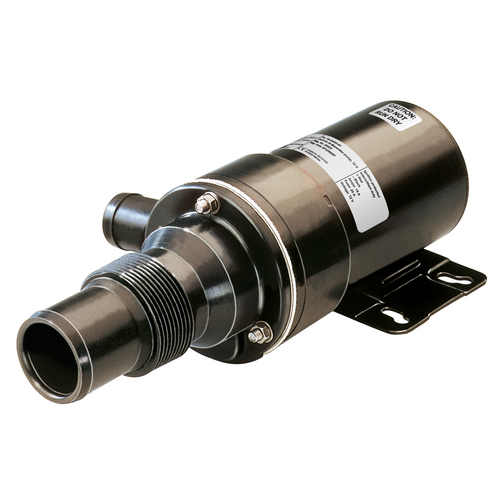

Johnson Pump 10-24453-05 TA3P10-19 Wastewater Macerator Unit
The Johnson Pump 10-24453-05 is a self-priming macerator pump (model TA3P10-19) designed to manage toilet wastewater in marine or RV sanitation systems. Rotating cutter blades shred waste before it is pumped into or out of the tank, helping reduce the risk of blockage in the discharge line. For best results, mount the pump as close as possible to the outlet of the tank or bowl, and use only unbleached toilet paper.
Application
- Toilet wastewater transfer (sanitation systems)
- Marine sanitation systems
- RV sanitation systems
Technical Specifications
Brand Johnson Pump Part Number 10-24453-05 Model TA3P10-19 Product Portfolio Electric waste water pumps Motor 12V/24V DC (with built-in thermal protection) Voltage (Listed) 24V Current (Listed) 24V / 7A DC motor Amperage (Max) 8A Recommended Fuse 12A Output (Listed) 37 L/min (10 GPM) at 2 m head Capacity (Also Listed) 23 L/min Inlet Connection 38 mm (1-1/2 in) hose or 38 mm (1-1/2 in) BSP thread Outlet Connection 25.4 mm (1 in) hose Weight 1.9 kg (4.2 lbs) Shipping Weight (Listed) 2.90 kg EAN (Listed) 8719182064848 Article Number (Listed) 66102445305
Product Details
- Pump housing: Phenolic plastic (PF)
- Housing material: PTMT (thermoplastic polyester)
- Impeller: Nitrile
- Shaft: Stainless steel
- Seal: Lip seal
Dimensions
- Dimensions (Listed): 230 mm x 108 mm x 82 mm
- Dimensions (Also Listed): Length 25.6 cm, Width 11.9 cm, Height 8.4 cm
Features
- Rotating cutter blades shred waste before discharge
- Self-priming wastewater macerator design
- Built-in thermal protection (as listed)
- Designed to be mounted close to the tank or bowl outlet
Service and Spare Parts (Listed)
- Service Kit: 09-45595
- Impeller Kit: 09-1052S-9
-
