ID
1330919
$ 923.30
1-2 weeks delivery time
-
+

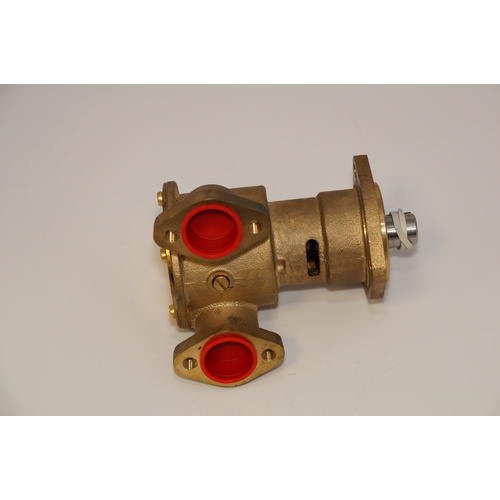

The Johnson Pump 10-24014-1 self-priming cooling water impeller pump delivers dependable seawater-compatible circulation for marine and industrial applications. Built in size F7 with a bronze pump body, it uses flange mounting with flange connections (28.5 mm inner diameter), a 1/1 full cam design, and a shaft-end key drive for secure power transmission. The pump is supplied with an MC97 impeller and is listed as an alternative to Agco V836136514 and Valmet Oy 8361-22971, with article number 6610240141 and shipping weight 3.70 kg.
- Description
- Ask a Question
-
Johnson Pump 10-24014-1 Self-Priming Cooling Water Impeller Unit
The Johnson Pump 10-24014-1 is a self-priming, flexible impeller pump intended for cooling water duty in marine and industrial environments. Its bronze construction and flange configuration support robust installation, while the included impeller helps keep service and replacement straightforward.
Application
- Use: Cooling water pump
- Typical environments: Marine and industrial applications
Compatibility
- Agco
- Ailsa Craig RA6
- Herald Marine 6.150
- Herald Marine 170
- Herald Marine 6.178T
- Herald Marine Magnum 300
- Iveco-Aifo 806 SM
- Iveco-Aifo 8060 MSD
- Iveco-Aifo 8061 M
- Iveco-Aifo 8061 SM
- Iveco-Aifo 8061 SRM
- Iveco-Aifo 821 M
- Iveco-Aifo 8220 M
- Iveco-Aifo 8361 M
- Iveco-Aifo 8361 SM
- Iveco-Aifo 8361 SRM
- Iveco-Aifo CO 3M
- Iveco-Aifo CP 3M
- Iveco-Aifo CP 3M SM
- Tempest Sea Lord 5.66
- Thornycroft 230
- Thornycroft 345
- Thornycroft 400
- Valmet Oy 411 CM
- Valmet Oy 411 CSM
- VM Motori 114 MH
- VM Motori 116 MH
- Volvo Penta TIMD 96B
- Volvo Penta 6.305
- Volvo Penta 6.354
- Perkins 6.305
- Perkins 6.354
- 6-cylinder 6.3543M
- 6HD 135
- 6HD 15D
Technical Specifications
Brand Johnson Pump Pump Type Self-Priming Cooling Water Flexible Impeller Pump Size F7 Material Bronze Mounting Flange mounting Connection Type Flange Connection Inner Diameter 28.5 mm Drive / Shaft End Shaft end with key (Key Drive) Impeller Hub Spline Drive Cam Design 1/1 (Full) Cam Design Included Impeller MC97 Shipping Weight 3.70 kg Article Number 6610240141
Product Details
- Product portfolio: Impeller pumps; cooling water pumps
- Model designation: F7B-9
- Alternative to: Agco V836136514
- Alternative to: Valmet Oy 8361-22971
Features
- Self-priming cooling water pump design for reliable operation
- Bronze pump body to support durability in demanding environments
- Flange mounting and flange connections for secure installation
- Full cam design (1/1) and supplied MC97 impeller
-
