The Johnson Pump 10-13650-01 Aqua O2 twin-port aerator pump cartridge delivers up to 800 GPH with a 12V connection, drawing up to 3.7A and protected by a 5A fuse. Its brushless 12/24 V DC motor is IP67-rated, ball-bearing supported, and built for continuous duty, while the black anodized aluminum housing and PA12 impeller support durable operation. Designed for fresh water and water/glycol mixtures (up to 60% glycol), it handles fluid temperatures from -40°C to +100°C, up to 2.5 bar system pressure, and tolerates dry running for up to 20 minutes, with universal mounting hardware for flat surfaces included.
- Description
- Ask a Question
-

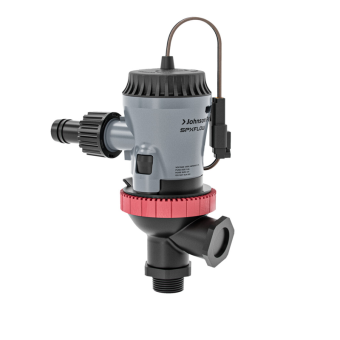

Johnson Pump 10-13650-01 Aqua O2 Twin Port Aeration Pump Unit
The Johnson Pump Aqua O2 cartridge aerator pump is a twin-port pumping solution built for dependable water movement. With a robust, marine-ready construction and a brushless motor design, it supports reliable operation where durability and consistent flow are essential.
Application
- Fresh water
- Water/glycol mixture (maximum 60% glycol)
Technical Specifications
Part Number 10-13650-01 Pump Type Aqua O2 Cartridge Twin Port Aerator Pump Performance 800 GPH Power Connection 12 V Maximum Load 3.7 A Fuse Size 5 A Motor 12/24 V DC, brushless, IP67, ball-bearing supported, permanent magnet, suitable for continuous duty Maximum Power Consumption 315 W Maximum System Pressure 2.5 bar Fluid Temperature Range Min -40°C, Max +100°C Dry Run Capability Maximum 20 minutes Hose Connection Options Ø 25 mm (3/4 in) or Ø 38 mm (1 1/4 in) Dimensions (L x W x H) 208 mm x 135 mm x 162 mm Weight 3.2 kg
Product Details
- Housing: Black anodized aluminum
- Impeller: PA12
- Shaft: Stainless steel
- Model Reference: Johnson CM95HP
- Mounting: Universal bracket for flat surfaces (included)
Features
- Twin-port design for flexible hose routing and installation
- IP67-rated brushless motor supports durable, continuous-duty operation
- Wide fluid compatibility for fresh water and water/glycol mixtures up to 60% glycol
- Broad temperature capability from -40°C to +100°C for demanding system conditions
-
