ID
1332440
$ 1,640.07
1-2 weeks delivery time
-
+
The Johnson Pump 10-22335-12 flexible impeller pump is a self-priming cooling water unit in size F7 with a bronze body for flange mounting. It uses flange connections with a 25.4 mm inner diameter and a shaft end drive with key and thread for secure power transfer. Supplied with a neoprene impeller and a 2/3 cam design, it is frequently used on selected Volvo Penta engine models and serves as an alternative to Volvo Penta 842275.
- Description
- Ask a Question
-

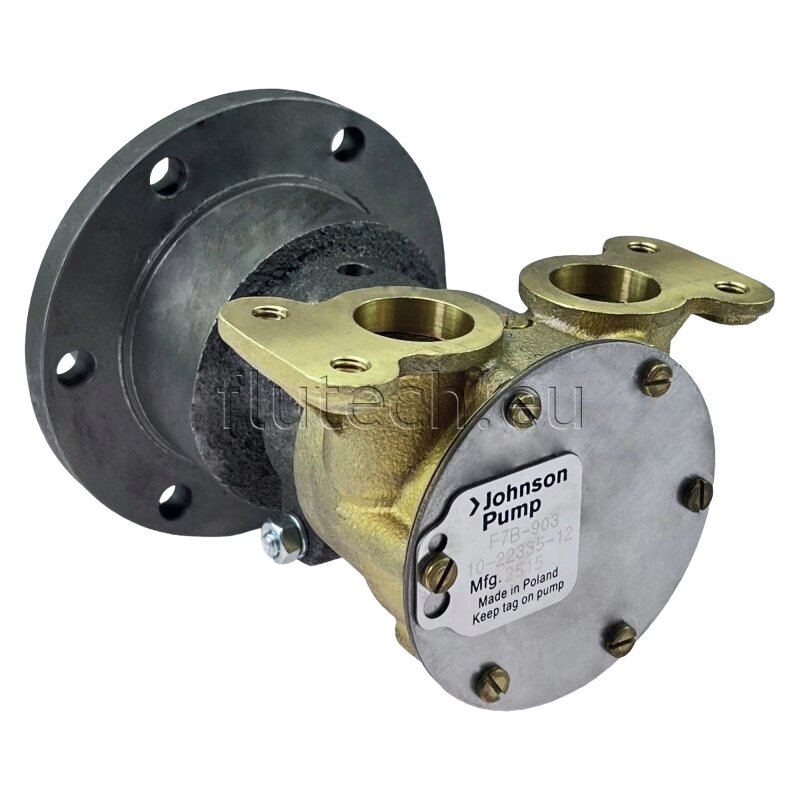

Johnson Pump 10-22335-12 F7 Bronze Flexible Impeller Unit
The Johnson Pump 10-22335-12 is a self-priming cooling water pump built around a flexible impeller design. Its bronze construction and flange-mounted layout make it a robust choice for marine engine cooling-water circulation, and it is commonly used as a replacement option on specific Volvo Penta applications.
Application
- Cooling water circulation (self-priming)
- Frequently used on Volvo Penta (VP) models:
- AQ 40DP engines
- AQD 30 engines
- AQD 30 DP engines
- MD 30 engines
- MD 30A engines
- TAMD 30 engines
- TAMD 30A engines
- TAMD 60 engines
- TAMD 60A engines
- TAMD 60B engines
- TAMD 60C engines
- THAMD 70 engines
- THAMD 70B engines
- THAMD 70C engines
- TIMD 96B engines
Cross reference: Alternative to Volvo Penta (VP) 842275.
Technical Specifications
Brand Johnson Pump Part Number 10-22335-12 Pump Series / Size F7 Model Reference F7B-903 Type Flexible impeller pump Product Portfolio Impeller pumps, Cooling water pumps Material Bronze Mounting Type Flange Connection Flange Connection Inner Diameter 25.4 mm Impeller Hub Spline drive Drive / Shaft End Shaft with key and thread Cam Design 2/3 Shipping Weight 0.60 kg
Product Details
- Version: Flange version with flange connections
- Pump body: Bronze pump body for flange mounting
- Drive arrangement: Via shaft end with woodruff key and lock nut
- Included: Neoprene impeller
Features
- Self-priming cooling water pump design in size F7
- Bronze construction supports durable service in marine environments
- Flange mounting and flange connections simplify installation on compatible setups
-
