ID
1330892
$ 576.61
1-2 weeks delivery time
-
+

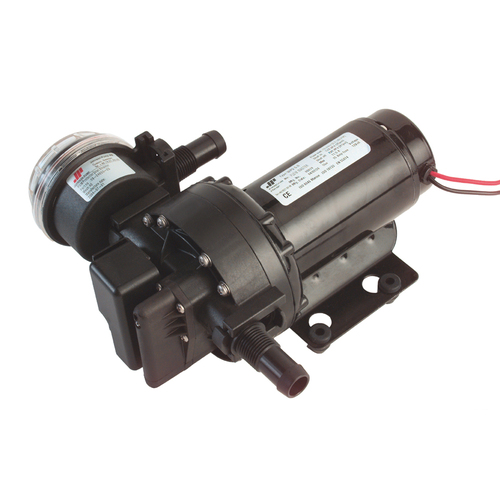

The Johnson Pump 10-13329-04 Aqua Jet Flow Master water pressure pump delivers whisper-quiet, self-priming performance with automatic speed control to maintain a smooth flow as demand changes. Built for fresh or sea water operation, it provides up to 19 l/min (5 GPM) with a rated cut-off pressure of 3.5 bar (50 psi) and includes an integrated pressure switch plus run-dry protection. The compact 24V DC, 150 W design features a five-chamber construction, quick-connect hose or threaded connection options, and a PUMProtector inlet strainer for low-maintenance marine service, backed by a limited 3-year warranty.
- Description
- Ask a Question
-
Johnson Pump 10-13329-04 Variable Flow 24V Water Pressure System
The Johnson Pump Aqua Jet Flow Master WPS-FM 5.0 is a whisper-quiet, self-priming water pressure pump engineered for marine water systems. Its electronic control automatically adjusts motor speed to keep water delivery smooth as demand increases and decreases, helping reduce noise and supporting efficient operation.
Application
- Marine water pressure systems
- Operates in fresh water
- Operates in sea water
Technical Specifications
Brand Johnson Pump Part Number 10-13329-04 Article Number 66101332904 EAN 8719182058007 Product Portfolio Water Pressure Systems Motor WPS 5.0, 150 W, 12/24V DC (with built-in overheat protection switch) Model 24V/150W Performance 19 l/min (5 GPM) Maximum Output (Listed) 19.4 l/min (5 GPM) Cut-Off Pressure 3.5 bar (50 PSI) Switch-Off Pressure (Listed) 3.45 bar Pressure Switch Settings (Listed) Cuts In 1.7 bar (25 PSI) / Cuts Out 4.1 bar (60 PSI) Self-Priming Yes (up to 2.5 m listed) Run-Dry Safe Yes Fuse 8 A Amperage (Listed) 6 A Dimensions 239 x 209 x 113 mm Weight 2 kg Shipping Weight (Listed) 4.00 kg Housing Nylon/Polypropylene Valves Santoprene/EPDM Membrane Santoprene Connections (Listed) 1/2" BSP / hose 1/2"; 1/2" BSP / hose 3/4"; 3/8" BSP / hose 1/2" Ports and Strainer (Listed) 40 mesh strainer; snap-in ports 2 x 1/2" BSP thread / 19 mm (3/4") hose barb and 2 x 3/8" BSP thread / 13 mm (1/2") hose barb
Product Details
- Construction: Five-chamber
- Electronics: Digital controller with automatic pump speed control (Variable Flow)
- Pressure Control: Integrated pressure switch (standard)
- Strainer Included: PUMProtector inlet strainer
- Accumulator Tank Guidance: Recommended for installation with an accumulator tank; also listed as not required
- Warranty: Limited 3-year warranty
Features
- Maintains a very smooth flow as water demand is increased and decreased
- Whisper-quiet operation
- Self-priming performance
- Runs dry without damage (listed)
- Quick-connect hose or threaded connectors available
- Easy, low-cost maintenance and long service life
- Suitable for fresh water or sea water
-
