The Flojet 01740002 inline inlet strainer is a 40-mesh fine filter designed for up to 16 LPM (4 GPM) flow. It uses 13 mm (1/2-inch) hose connections on both inlet and outlet, supports up to 5 bar (70 PSI) and 70°C, and features a transparent screw-off housing for easy inspection and cleaning. Material set includes a polypropylene base, polysulfone cover, stainless-steel strainer, and a Buna-N cover O-ring; approximate dimensions are 121 x 70 x 57 mm with a shipping weight of 0.15 kg.
- Description
- Ask a Question
-

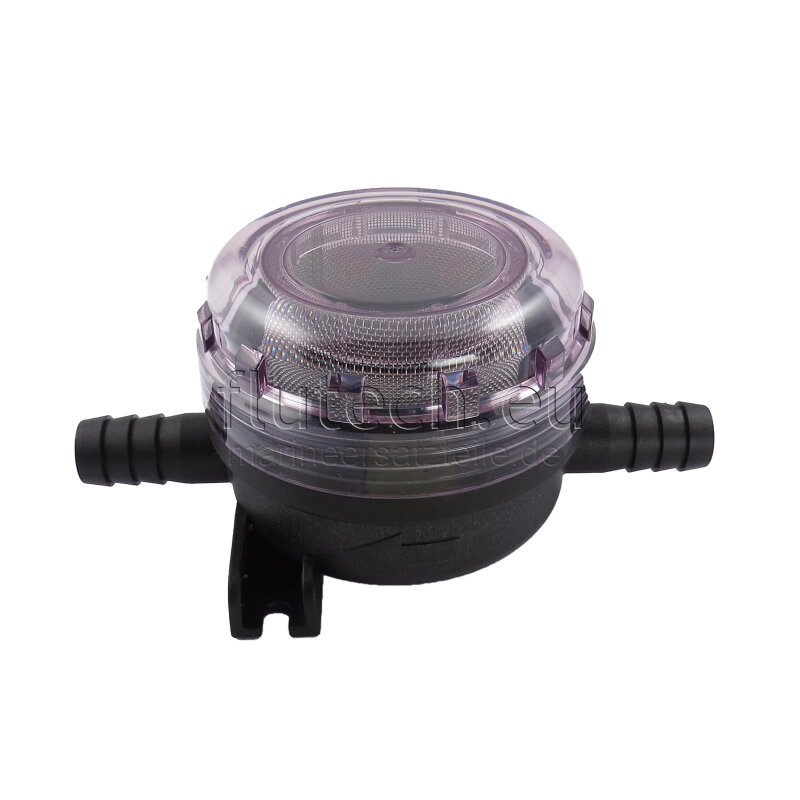

Flojet Inline Suction Strainer, 40 Mesh, 1/2 Inch
The Flojet 01740002 is an inline strainer designed to protect water systems by filtering particles before they can jam valves or contribute to pump breakdowns. Its transparent, screw-off housing supports quick inspection and straightforward cleaning of the stainless-steel screen.
Technical Specifications
Design Inline Max Flow Rate 16 L/min (4 GPM) Inlet Connection 13 mm (1/2 inch) hose connection (inner diameter) Outlet Connection 13 mm (1/2 inch) hose connection (inner diameter) Filter Screen 40 mesh per square inch (approx. 0.4 mm openings) Max Pressure 5 bar (70 PSI) Max Temperature 70�0C Materials Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless Steel; Cover O-Ring: Buna-N Dimensions (Approx.) 121 mm (L) x 70 mm (W) x 57 mm (H) Shipping Weight 0.15 kg
Features
- Suitable for water pressure systems and high-pressure systems
- For potable water and salt water applications
- Helps prevent particles from jamming valves and causing pump breakdowns
- Transparent screw-off housing for easy inspection and cleaning
Compatibility
- Alternative to Jabsco 46400-0002
- Alternative to Jabsco 36400-0000
-
