ID
1369832
$ 26.87
1-2 weeks delivery time
-
+
The Flojet 01740300B mini suction strainer is a straight-design fine filter with a 40 mesh stainless-steel screen (40 meshes per square inch, approx. 0.4 mm openings). It uses plug-in connections with an inlet plug-in connection (female) for 2–4 GPM Jabsco/Flojet ports and an outlet plug-in port (male) for 2–4 GPM Jabsco/Flojet pumps. The housing uses polypropylene and polysulfone with Buna-N and EPDM O-rings; approximate dimensions are 64 mm length (plus port) x 58 mm width x 50 mm height, and shipping weight is 0.10 kg.
- Description
- Ask a Question
-

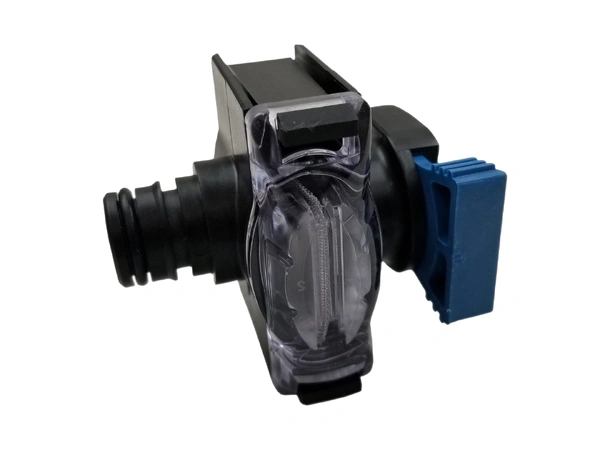

Flojet 01740300B Mini Suction Strainer With Plug-In Connections
The Flojet 01740300B is a compact, straight-design mini strainer used as a fine filter to help protect pump valves by trapping particles before they can cause jamming or breakdowns. Its transparent housing supports quick visual inspection and cleaning of the stainless-steel strainer element.
Technical Specifications
Design Straight Inlet Plug-in connection (female) for 29 GPM Jabsco / Flojet ports Outlet Plug-in port (male) for 29 GPM Jabsco / Flojet pumps Filter Screen 40 meshes per square inch (approx. 0.4 mm openings) Materials Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless Steel; Cover O-Ring: Buna-N; Port O-Ring: EPDM Dimensions (Approx.) Length 64 mm (plus port) / Width 58 mm / Height 50 mm Brand Flojet Shipping Weight 0.10 kg
Features
- Ideal for water pressure systems and high-pressure systems
- Suitable for potable water and salt water applications
- Filter surface is approximately 30% of larger round filters, so it is only suitable for liquids without significant solids
- Helps prevent particles from jamming valves and causing pump breakdowns
- Transparent housing for easy inspection and cleaning of the stainless strainer
Compatibility
- 29 GPM Jabsco ports
- 29 GPM Flojet ports
- 29 GPM Jabsco pumps
- 29 GPM Flojet pumps
Product Details
- Alternative to Jabsco 46400-0030
- Alternative to Jabsco 46400-0500
- Alternative to Jabsco 46400-0530
- Alternative to Flojet 01740300
- Alternative to Flojet 01740300A
- Alternative to Flojet 01740300B
-
