ID
1348341
$ 41.30
1-2 weeks delivery time
-
+
The Flojet 01740000 inline suction strainer is a 40 mesh fine filter with 19 mm (3/4 inch) hose connections on both inlet and outlet for inline installation. It is rated for up to 27 LPM (7 GPM) flow, 5 bar (70 PSI) maximum pressure, and 70°C maximum temperature, and uses a stainless steel strainer with a transparent screw-off housing for inspection and cleaning. Approximate dimensions are 121 x 70 x 57 mm, with a shipping weight of 0.15 kg.
- Description
- Ask a Question
-

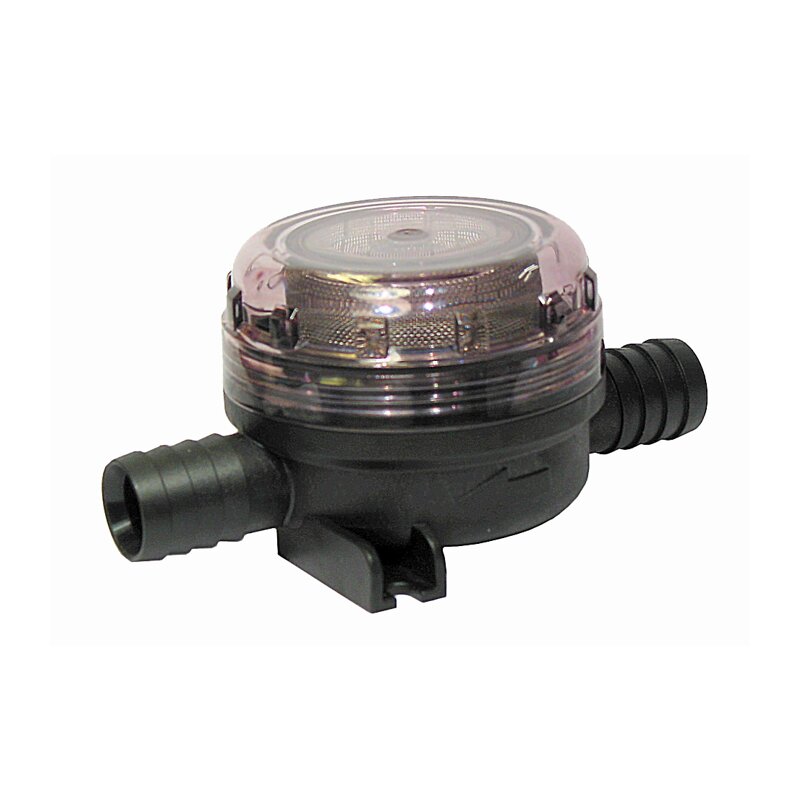

Flojet Pumpgard Inline Suction Strainer 40 Mesh, 3/4 Inch
The Flojet 01740000 is an inline Pumpgard strainer designed to protect pumps and system components by filtering particles before they can jam valves or contribute to pump failures. Its transparent, screw-off housing supports quick visual inspection and easy cleaning of the stainless steel screen.
Technical Specifications
Design Inline Inlet Connection 19 mm (3/4 inch) hose connection, inner diameter Outlet Connection 19 mm (3/4 inch) hose connection, inner diameter Filter Screen 40 mesh per square inch (approx. 0.4 mm openings) Maximum Flow Rate 27 L/min (7 GPM) Maximum Pressure 5 bar (70 PSI) Maximum Temperature 70�C Materials Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless Steel; Cover O-Ring: Buna-N Dimensions (Approx.) Length 121 mm; Width 70 mm; Height 57 mm Shipping Weight 0.15 kg
Features
- Suitable for water pressure systems and high-pressure systems
- For potable water and salt water applications
- Helps prevent particles from jamming valves and causing pump breakdowns
- Transparent screw-off housing for easy inspection and cleaning
Product Details
- Alternative to Jabsco 46400-0000
- Alternative to Jabsco 36220-0000
-
