ID
1348338
$ 41.30
1-2 weeks delivery time
-
+
The Flojet 01720012 inlet strainer is a 90° coarse filtration component for 2–5 GPM Flojet/Jabsco pumps, with a 13 mm (1/2 inch) hose inlet and a snap-in pump port outlet (male). It uses a 20 mesh-per-square-inch stainless steel screen (approx. 0.8 mm openings) and is rated to 16 LPM (4 GPM), 5 bar (70 PSI), and 70°C, with a transparent screw-off housing for inspection and cleaning; approximate dimensions are 96 x 70 x 83 mm and shipping weight is 0.15 kg.
- Description
- Ask a Question
-

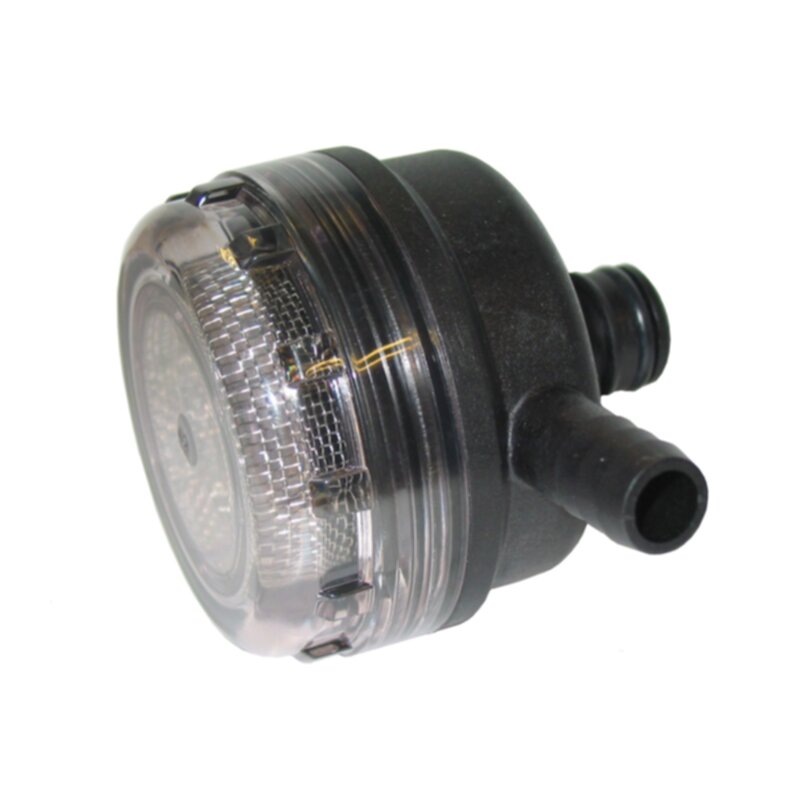

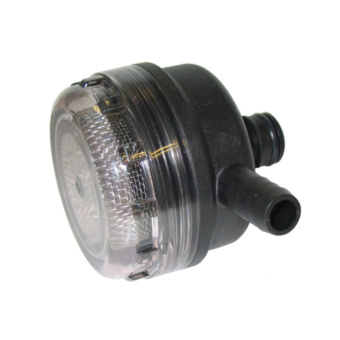

Flojet 01720012 90-Degree Pump Inlet Strainer
The Flojet 01720012 is a 90-degree inlet strainer designed to help protect pumps by filtering debris before it can jam valves and cause breakdowns. It features a transparent, screw-off housing to make inspection and cleaning of the stainless steel screen quick and straightforward.
Technical Specifications
Strainer Type Inlet strainer (coarse filter), 90° design Inlet Connection 13 mm (1/2 inch) hose connection (inner diameter) Outlet Connection Snap-in pump port (male) for 2–5 GPM Jabsco / Flojet pumps Filter Screen 20 mesh per square inch (approx. 0.8 mm openings), stainless steel Maximum Flow 16 L/min (4 GPM) Maximum Pressure 5 bar (70 PSI) Maximum Temperature 70°C Materials Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless Steel; Cover O-Ring: Buna-N; Port O-Ring: EPDM Dimensions (Approx.) Length 96 mm; Width 70 mm; Height 83 mm Shipping Weight 0.15 kg
Features
- Designed for bilge pumping, toilet rinse, and open-flow applications
- Suitable for potable water and salt water applications
- Helps prevent particles from jamming valves and causing pump breakdowns
- Transparent screw-off housing for easy inspection and cleaning
Compatibility
- Alternative to Jabsco Pumpgard 46200-0012
- Alternative to Jabsco Pumpgard 36200-0012
- Alternative to Flojet 01720-012
-
