The Flojet 01740014 suction strainer is a 90-degree fine filter with a 40 mesh stainless-steel screen (approximately 0.4 mm openings) for water pressure and high-pressure systems. It has a 1/2 inch QEST thread inlet and a male plug-in outlet port for 2–5 GPM Jabsco and Flojet pumps, and is rated up to 23 L/min (6 GPM), 5 bar (70 PSI), and 70°C. The housing is a transparent screw-off design for inspection and cleaning; approximate dimensions are 96 x 70 x 83 mm and shipping weight is 0.15 kg.
- Description
- Ask a Question
-

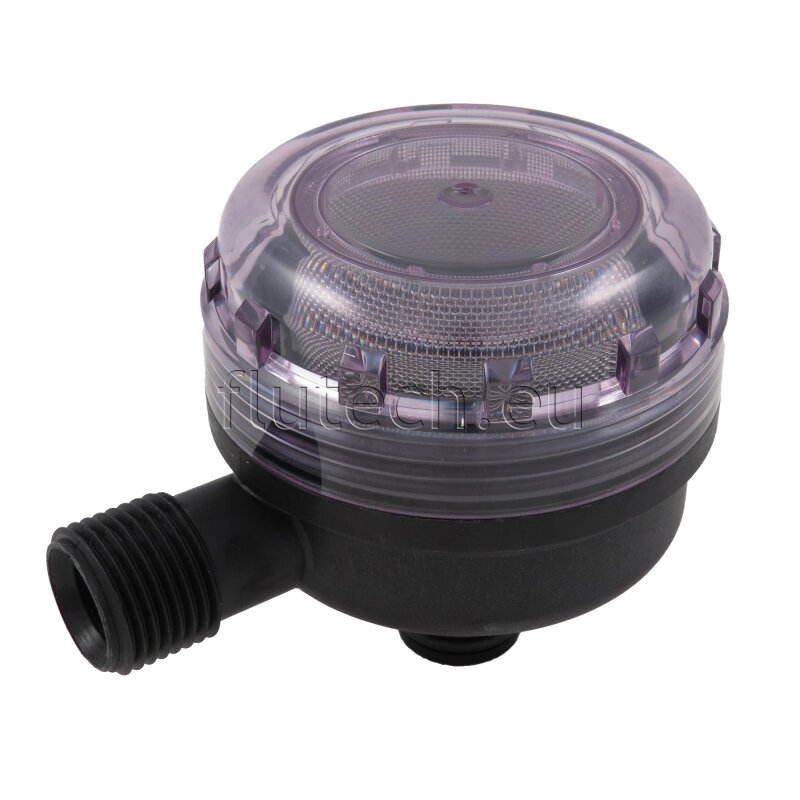

Flojet 01740014 90-Degree Pump Suction Strainer, 40 Mesh
The Flojet 01740014 is a 90-degree inlet strainer designed to help protect pump valves and internal components by filtering particles from the water supply. It is intended for use in water pressure and high-pressure systems, including potable water and salt water applications, and features a transparent screw-off housing for quick inspection and cleaning.
Technical Specifications
Design 90 Degree Inlet 1/2 inch QEST thread (male) Outlet Plug-in port (male) for 2–5 GPM pumps Filter Screen 40 mesh per square inch (approx. 0.4 mm openings) Maximum Flow 23 L/min (6 GPM) Maximum Pressure 5 bar (70 PSI) Maximum Temperature 70 °C Materials Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless Steel; Cover O-Ring: Buna-N; Port O-Ring: EPDM Dimensions (Approx.) Length 96 mm / Width 70 mm / Height 83 mm Shipping Weight 0.15 kg
Compatibility
- Jabsco pumps (2–5 GPM)
- Flojet pumps (2–5 GPM)
- Alternative to Jabsco 46400-0014
Features
- Helps prevent particles from jamming valves and causing pump breakdowns
- Suitable for potable water and salt water applications
- Transparent screw-off housing for easy inspection and cleaning
- Stainless-steel strainer element
-
