The Flojet 01740950 snap-in fine filter strainer is a 90-degree inline filter accessory for 2–5 GPM Jabsco/Flojet ports and pumps, using plug-in connections (female inlet for ports and male outlet for pumps). It uses a 40 mesh stainless-steel screen (approx. 0.4 mm openings), is rated to 5 bar (70 PSI) and 70 C, and has a transparent screw-off housing for inspection and cleaning. Materials include a polypropylene base, polysulfone cover, stainless-steel strainer, Buna-N cover O-ring, and EPDM port O-ring; dimensions are approx. 70 x 70 x 83 mm (length plus port), with a shipping weight of 0.15 kg.
- Description
- Ask a Question
-

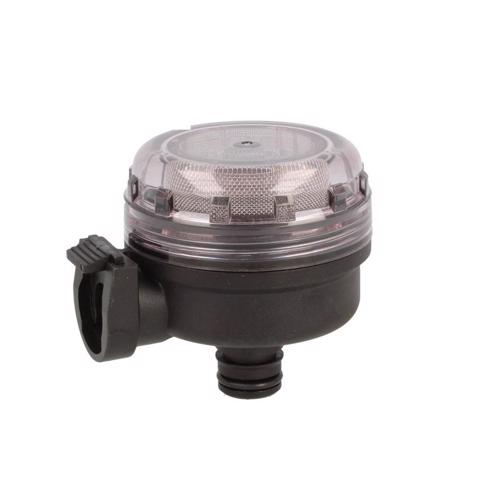

Flojet 01740950 Snap-In Fine Filter Strainer, 90-Degree
The Flojet 01740950 is a snap-in fine filter accessory designed for use with Jabsco/Flojet water system ports and pumps. Its 90-degree body and plug-in connections support quick installation while helping protect the pump by filtering particles before they can reach valves.
Technical Specifications
Brand Flojet Order Number 00320546 Supplier Code 01740950 Barcode 19G49099 Version 90 Degree Connections Two snap-in fittings Inlet Plug-in connection (female) for 2–5 GPM Jabsco/Flojet ports Outlet Plug-in port (male) for 2–5 GPM Jabsco/Flojet pumps Filter Screen 40 mesh per square inch (approx. 0.4 mm openings) Maximum Pressure 5 bar (70 PSI) Maximum Temperature 70 C Materials Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless Steel; Cover O-Ring: Buna-N; Port O-Ring: EPDM Dimensions Length approx. 70 mm (plus port) / Width approx. 70 mm / Height approx. 83 mm Shipping Weight 0.15 kg Alternative To Jabsco 46400-9500
Compatibility
- 2–5 GPM Jabsco/Flojet ports
- 2–5 GPM Jabsco/Flojet pumps
- Alternative to Jabsco 46400-9500
Features
- 90-degree snap-in strainer for compact installations
- Suitable for potable water and salt water applications
- Recommended for water pressure systems and high pressure systems
- Helps prevent particles from jamming valves and causing pump breakdowns
- Transparent screw-off housing for easy inspection and cleaning of the stainless-steel strainer
-
