The Flojet 01740375A inline strainer is a 40 mesh fine filter designed for suction-side installation with a 10mm (3/8 inch) hose inlet and a 3/8 inch QEST outlet thread. It is rated for up to 8 LPM (2 GPM) flow, 5 bar (70 PSI) maximum pressure, and 70 °C maximum temperature. The housing uses a polypropylene base and polysulfone cover with a stainless-steel screen and a Buna-N cover O-ring, and measures approximately 121 x 70 x 57 mm.
- Description
- Ask a Question
-

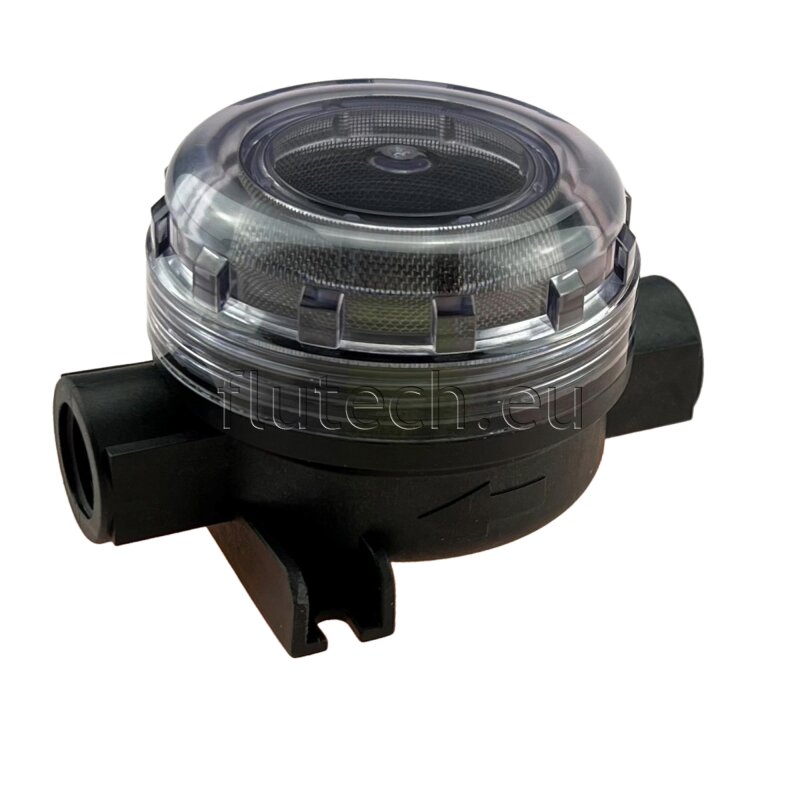

Flojet 01740375A Inline Fine-Mesh Suction Strainer
The Flojet 01740375A is an inline suction strainer designed to help protect water system components by filtering particles before they can jam valves or contribute to pump breakdowns. Its transparent, screw-off housing supports quick visual inspection and easy cleaning of the stainless-steel screen.
Technical Specifications
Design Inline (suction strainer) Filter Screen 40 mesh per square inch (approx. 0.4 mm openings) Max Flow Rate 8 LPM (2 GPM) Max Pressure 5 bar (70 PSI) Max Temperature 70 °C Inlet 10 mm (3/8 inch) hose connection (inner diameter) Outlet 3/8 inch QEST thread Materials Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless Steel; Cover O-Ring: Buna-N Dimensions (Approx.) Length 121 mm x Width 70 mm x Height 57 mm Shipping Weight 0.15 kg
Features
- Suitable for water pressure systems and high-pressure systems
- For potable water and salt water applications
- Helps prevent particles from jamming valves and contributing to pump breakdowns
- Transparent screw-off housing for easy inspection and cleaning of the stainless strainer
Product Details
- Alternative to Flojet 01740-375A
-
