The Flojet 01720000 inline suction strainer is a 20 mesh coarse filter with 19 mm (3/4 inch) hose connections on both the inlet and outlet. It is rated for a maximum flow of 27 LPM (7 GPM), maximum pressure of 5 bar (70 PSI), and maximum temperature of 70 °C. The unit uses a stainless steel strainer with a transparent screw-off housing and features polypropylene and polysulfone body components with a Buna-N cover O-ring.
- Description
- Ask a Question
-

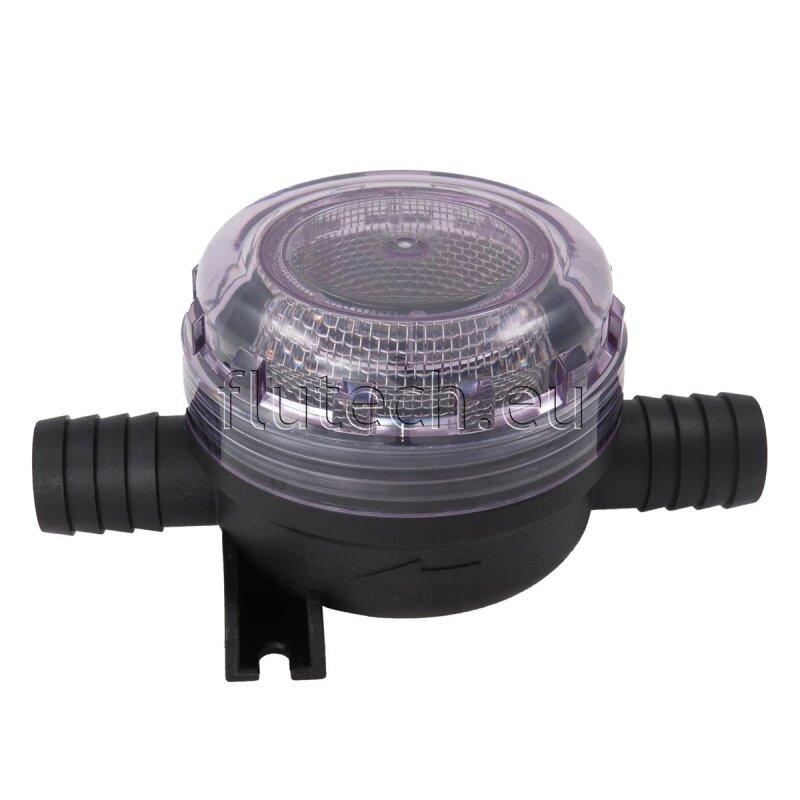

Flojet 01720000 Inline Suction Strainer 20 Mesh
The Flojet 01720000 is an inline strainer designed to protect pump systems by filtering coarse debris before it can jam valves or contribute to pump breakdowns. Its transparent, screw-off housing supports quick inspection and cleaning of the stainless steel strainer element.
Technical Specifications
Design Inline Inlet Connection 19 mm (3/4 inch) hose connection (inner diameter) Outlet Connection 19 mm (3/4 inch) hose connection (inner diameter) Filter Screen 20 mesh per square inch (approx. 0.8 mm openings) Maximum Flow 27 L/min (7 GPM) Maximum Pressure 5 bar (70 PSI) Maximum Temperature 70 °C Materials Base: Polypropylene; Cover: Polysulfone; Strainer: Stainless Steel; Cover O-Ring: Buna-N Dimensions (Approx.) Length 121 mm; Width 70 mm; Height 57 mm Shipping Weight 0.15 kg
Features
- Ideal for bilge pumping, toilet rinse, and open flow applications
- Suitable for potable water and salt water applications
- Helps prevent particles from jamming valves and causing pump breakdowns
- Transparent screw-off housing for easy inspection and cleaning
Product Details
- Alternative to Jabsco Pumpgard 46200-0000
- Alternative to Jabsco Pumpgard 36200-0000
- Alternative to Flojet 01720000
- Alternative to Flojet 01720-000
-
