The Flojet 01603530A 90° transfer valve is a vacuum switching valve for bag-in-box systems, automatically switching between empty and full bags. It includes manual operation, polypropylene housing, quick disconnect fittings, and a 3/8" hose barb elbow.
- Description
- Ask a Question
-

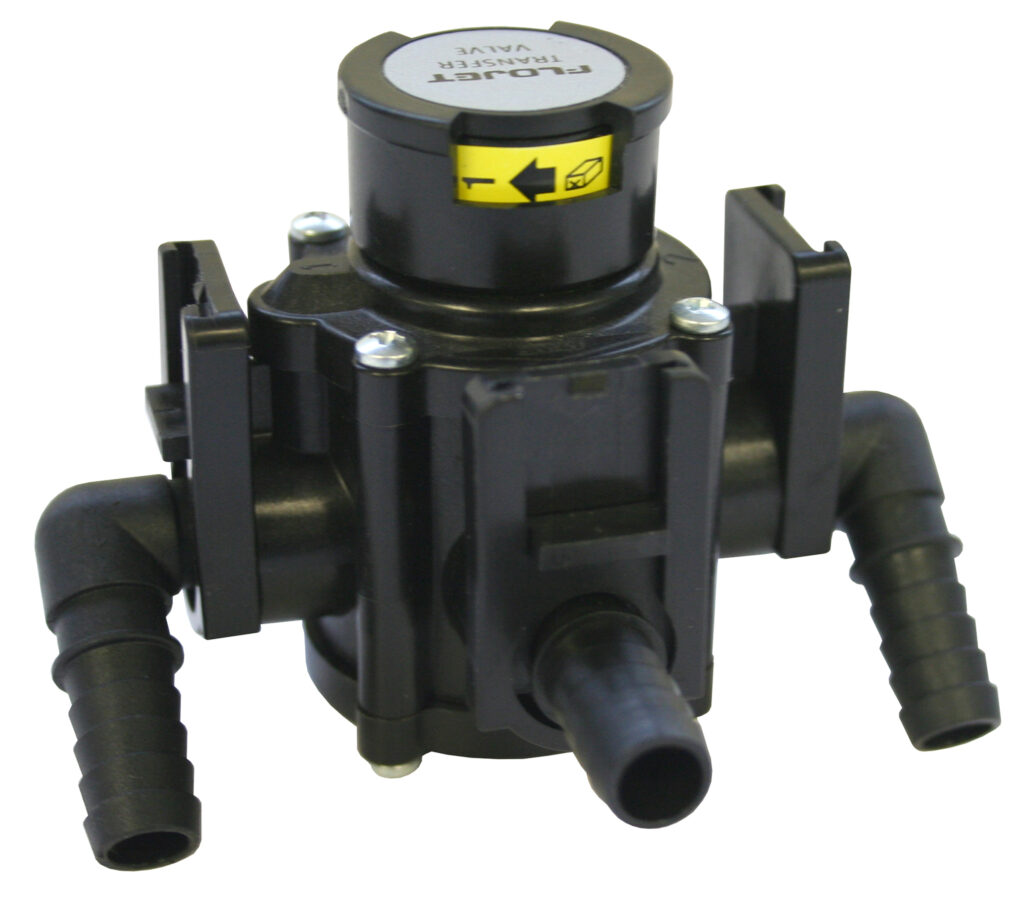

Flojet 01603530A - 90° Transfer Valve BiB 3/8″
The Flojet 01603530A 90° transfer valve is a vacuum switching valve for bag-in-box containers. It can be installed in any position and manually operated if required. Installation is recommended between 10 and 90 cm from the BiB containers.
Part of the 1600 Series, this valve automatically switches from an empty bag to a full bag without interruption. The cap allows manual selection, while the label indicator shows which bag is online. The polypropylene housing includes a quick disconnect fitting design for straightforward installation.
Product Features
- Automatic empty-to-full bag switching
- Manual operation capability
- Vacuum operated snap action diaphragm
- Quick-connect fittings
- Label indicator for active BiB
- Operates multiple horizontal BiB banks
- 3/8" hose barb elbow quick disconnect
Technical Data
Installation Distance 10 - 90 cm From BiB Containers Connection 3/8" Hose Barb 90° Elbow Quick Disconnect Housing Material Polypropylene Operation Vacuum Automatic With Manual Option
Brand: Flojet
Article: 01603530A -
