ID
1353724
$ 70.30
1-2 weeks delivery time
-
+
The Flojet 01603231A straight transfer valve for bag-in-box containers operates automatically or manually, switching from empty to full bags without interruption. It features a polypropylene housing, quick disconnect fittings, 3/8" hose barb, and is suitable for horizontal BiB banks.
- Description
- Ask a Question
-

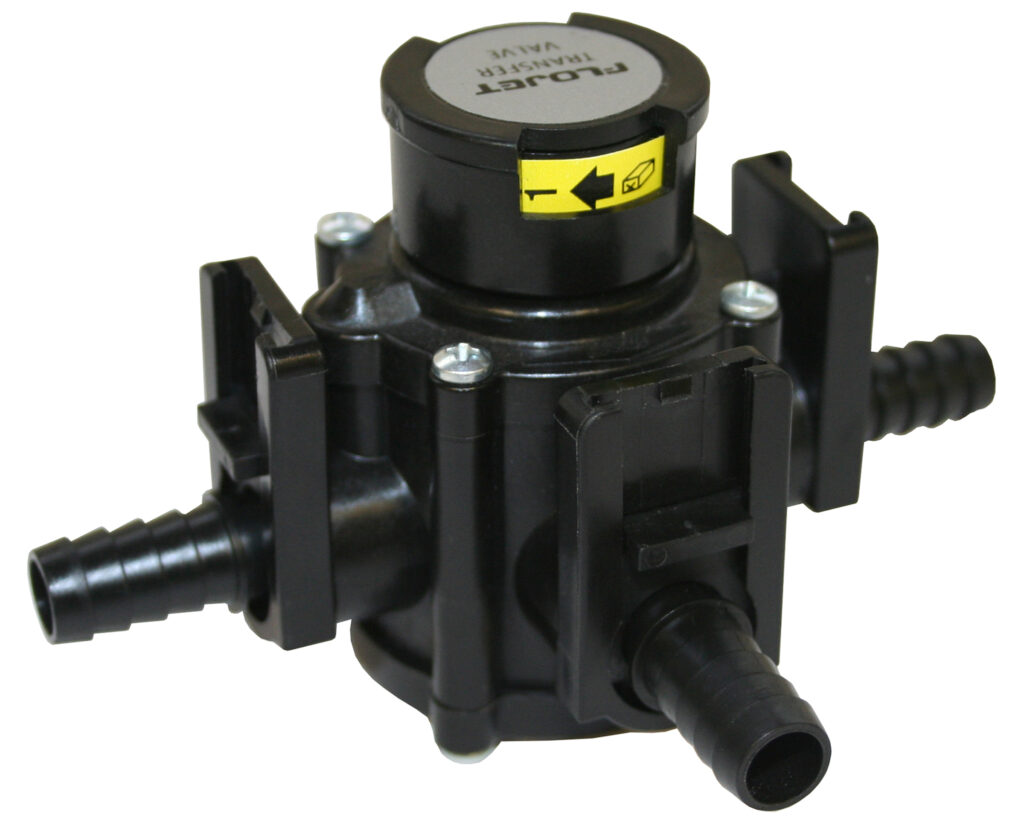

Flojet 01603231A - Straight Transfer Valve BiB
The Flojet 01603231A straight transfer valve is a vacuum switching valve for bag-in-box containers. It can be installed in any position and may also be operated manually. Designed for installation between 10 and 90 cm from the BiB containers, it is suitable for various dispensing applications.
The 1600 Series valve operates automatically, switching from an empty bag to a full one without interruption. Manual operation is possible by pulling up or pushing down the cap, with a label indicator showing which bag is online. The housing is molded from polypropylene and features a quick disconnect fitting design for easy installation.
Product Features
- Automatic switching from empty to full bag
- Manual operation via cap
- Vacuum operated snap action diaphragm
- Quick-connect fittings
- Label indicator for active BiB
- Suitable for horizontal multiple BiB banks
- 3/8" hose barb straight quick disconnect
- Compliant with EC 1935/2004
Technical Data
Installation Distance 10 - 90 cm From BiB Containers Installation Height From 900mm height (Straight) Connection 3/8" Hose Barb Straight Quick Disconnect Housing Material Polypropylene Operation Vacuum Automatic With Manual Option
Brand: Flojet
Article: 01603231A -
