The Flojet 01603230A straight liquid transfer valve is designed for bag-in-box (BIB) dispensing systems and industrial BIB applications, typically used with air-driven pumps. It uses EU food-grade (NSF) elastomers (NBR/Buna TPV), a polypropylene body, a vacuum-operated snap-on membrane, and a stainless steel spring. Connections are 3 x straight 3/8 inch (10 mm) hose connections with interchangeable quick connect fittings, and it supports automatic switching from an empty to a full bag without interruption with manual operation capability and a label indicator for the online BIB.
- Description
- Ask a Question
-

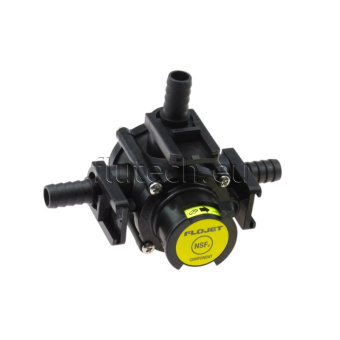

Straight Bag-in-Box Liquid Transfer Valve With Quick Connect
The Flojet 01603230A is a straight liquid transfer valve developed for bag-in-box (BIB) dispensing systems and industrial BIB applications. It is typically used with air-driven pumps and is configured with food-grade elastomers for beverage dispensing and food service use.
Features
- Automatically switches from an empty bag to a full bag without interruption
- Can operate multiple horizontal rows of bag-in-boxes (BIB)
- Label indicator shows which BIB is online
- Can also be operated manually
- Version for standard height
- Vacuum-operated snap-on membrane
- Quick connect coupling for easier installation
Technical Specifications
Brand Flojet Valve Type Liquid transfer valve Configuration Straight Housing Material Polypropylene plastic Elastomers NBR/Buna TPV (food grade) Spring Material Stainless steel Connections 3 x straight 3/8 inch (10 mm) hose connections (interchangeable quick connect fittings) Certifications / Regulations NSF 18; Regulation (EC) No. 1935/2004
Product Details
This valve is configured with food-grade elastomers intended for beverage dispensing and food service applications, and it is designed for use in BIB systems where quick bag changeover is required.
-
