Zipwake IT450-S-V Interceptor 19° is a robust V-shaped interceptor for centerline installation, designed to improve trim efficiency and vessel stability across a wide range of hull designs up to 60 knots. Brand Zipwake, Article 2011484.
- Description
- Ask a Question
-
Zipwake 2011484 - IT450-S-V Interceptor - 19° Angle
The Zipwake IT450-S-V Interceptor with a 19° angle is a V-shaped interceptor engineered for centerline mounting. It is ideal for installations between twin outboards, sterndrives, or dual propeller tunnels, ensuring efficient trim control and improved vessel stability across a wide range of hull designs.
Product Overview

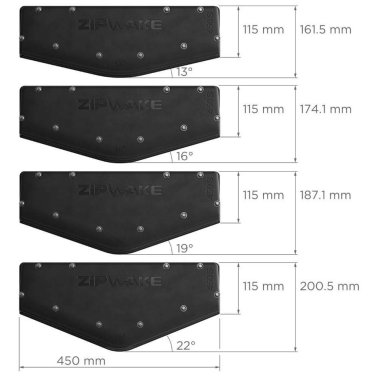

This model belongs to the V-shaped IT450-S series, which effectively covers hull deadrise angles from 11° to 24°. The 19° interceptor delivers reliable performance, fast response, and long-term durability, making it suitable for both new installations and retrofitting existing systems.
Technical Data
Model IT450-S V19 Length 450 mm (18 in) Weight 3.4 kg (7.5 lbs) Maximum Boat Speed 60 knots Blade Stroke 30 mm (1.2 in) Blade Rate 20 mm/s (0.8 in/s) Thru-Hull Cable Fitting Concealed or above waterline Servo Actuator SU-S Cable Length 3 m (10 ft), extendable up to 6 m (20 ft) Cable Material PUR Connector M12 5-pin circular Connector Diameter 14.5 mm (0.57 in) Supply Voltage 12 – 32 V DC Power Consumption 25 W max Operating Temperature 0° to +40°C (+32° to +104°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP68, 5 m (16 ft) Compliance CE, FCC
Brand: Zipwake
Article: 2011484 -
