Zipwake IT450-S-V Interceptor 13° is a V-shaped centerline interceptor designed for mounting between twin engines or tunnels, delivering precise trim control for hull deadrise angles within the V-series range and supporting speeds up to 60 knots. Brand Zipwake, Article 2011482.
- Description
- Ask a Question
-
Zipwake 2011482 - IT450-S-V Interceptor - 13° Angle
The Zipwake IT450-S-V Interceptor with a 13° angle is a V-shaped interceptor developed for centerline mounting. It is ideal for filling the gap between twin outboards, sterndrives, or dual propeller tunnels. This model delivers precise trim control and enhanced vessel performance, whether installed on new boats or retrofitted to existing systems.
Product Overview

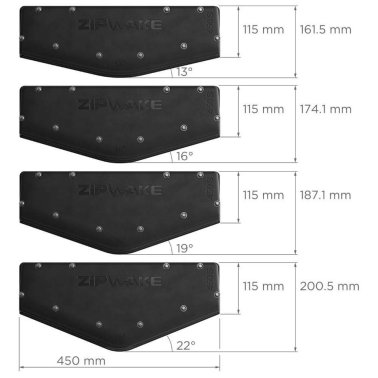

The V-shaped interceptor range effectively covers hull deadrise angles from 11° to 24°, ensuring optimal performance across a wide variety of hull designs. The 13° version is engineered for efficiency, durability, and smooth operation at high speeds.
Technical Data
Model IT450-S V13 Length 450 mm (18 in) Weight 3.2 kg (7.1 lbs) Maximum Boat Speed 60 knots Blade Stroke 30 mm (1.2 in) Blade Rate 20 mm/s (0.8 in/s) Thru-Hull Cable Fitting Concealed or above waterline Servo Actuator SU-S Cable Length 3 m (10 ft), extendable up to 6 m (20 ft) Cable Material PUR Connector M12 5-pin circular Connector Diameter 14.5 mm (0.57 in) Supply Voltage 12 – 32 V DC Power Consumption 25 W max Operating Temperature 0° to +40°C (+32° to +104°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP68, 5 m (16 ft) Compliance CE, FCC
Brand: Zipwake
Article: 2011482 -
