ID
1342039
$ 4,116.25
1-2 weeks delivery time
-
+
Zipwake KB450-S Dynamic Trim Control System Kit includes all components for automatic trim control with 450 mm interceptors and supports expansion up to six interceptors without additional power supply. Brand Zipwake, Article 2011516.
- Description
- Ask a Question
-
Zipwake 2011516 - KB450-S Dynamic Trim Control System Kit

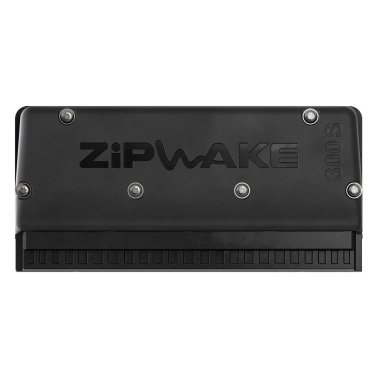

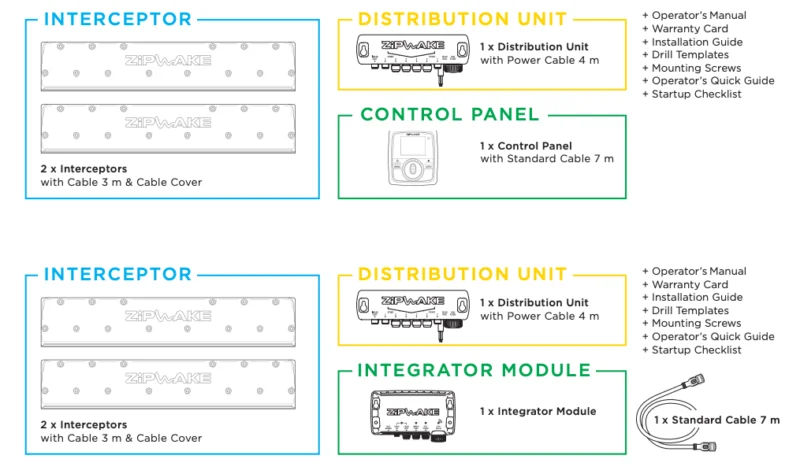

The Zipwake KB450-S Dynamic Trim Control System Kit is a complete installation package designed to optimize boat performance, comfort, and efficiency. It includes all required components to install a Dynamic Trim Control System with one pair of fast-acting straight or chine interceptors.
Product Overview

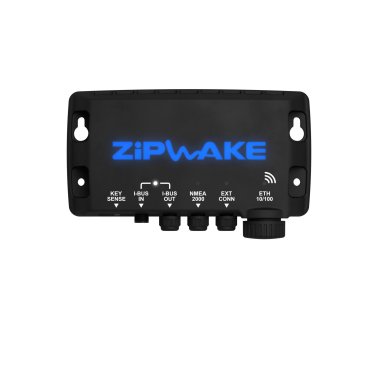

This kit features a stylish, user-friendly, and intuitive control panel. The base system can be expanded with up to two additional pairs of Series S interceptors, allowing a total of six interceptors without the need for extra connectors or an additional power supply. It is suitable for both standard installations and integrated systems with hardwired and wireless communication modules.
Technical Data
Model KBI450-S Kit Width 680 mm (26.8 in) Kit Depth 156 mm (6.1 in) Kit Height 274 mm (10.8 in) Kit Weight 8.5 kg (18.7 lbs) Interceptor Width 450 mm Interceptor Height 115 mm Blade Stroke 30 mm Power Consumption 25 W Supply Voltage 12 – 32 V Maximum Speed 60 knots Boat Length Range 10 – 50 ft System Type Integrator Packaging Packaging
Brand: Zipwake
Article: 2011516 -
