ID
1342037
$ 1,487.44
1-2 weeks delivery time
-
+
Zipwake IT450-S-V Interceptor 22° is intended for steeper deadrise hulls, filling the centerline gap between propulsion units while delivering fast, accurate trim control and improved onboard comfort. Brand Zipwake, Article 2011485.
- Description
- Ask a Question
-
Zipwake 2011485 - IT450-S-V Interceptor - 22° Angle
The Zipwake IT450-S-V Interceptor with a 22° angle is designed for centerline mounting on boats with steeper deadrise hulls. It efficiently fills the gap between twin outboards, sterndrives, or dual propeller tunnels, providing precise trim control and enhanced onboard comfort.
Product Overview

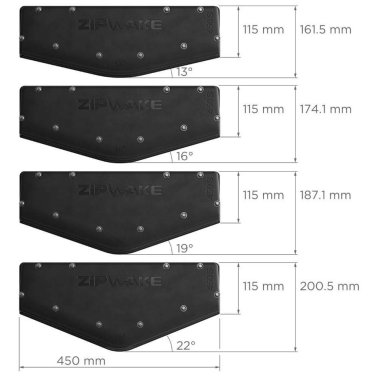

As part of the IT450-S V-shaped interceptor family, this 22° model supports hull deadrise angles from 11° to 24°. It is suitable for both new installations and retrofits, delivering fast blade response and dependable performance even at higher speeds.
Technical Data
Model IT450-S V22 Length 450 mm (18 in) Weight 3.5 kg (7.7 lbs) Maximum Boat Speed 60 knots Blade Stroke 30 mm (1.2 in) Blade Rate 20 mm/s (0.8 in/s) Thru-Hull Cable Fitting Concealed or above waterline Servo Actuator SU-S Cable Length 3 m (10 ft), extendable up to 6 m (20 ft) Cable Material PUR Connector M12 5-pin circular Connector Diameter 14.5 mm (0.57 in) Supply Voltage 12 – 32 V DC Power Consumption 25 W max Operating Temperature 0° to +40°C (+32° to +104°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP68, 5 m (16 ft) Compliance CE, FCC
Brand: Zipwake
Article: 2011485 -
