Zipwake Chine Integrator KB300-S Stabilizer Kit delivers automatic control of trim, heel, and roll using gyro and GPS data, supporting integrator-based operation and expansion up to six interceptors. Brand Zipwake, Article 2011519.
- Description
- Ask a Question
-
Zipwake 2011519 - Chine Integrator KB300-S Stabilizer Kit
The Zipwake Chine Integrator KB300-S Stabilizer Kit is part of the advanced Zipwake S Series Dynamic Control System. It delivers precise, user-friendly, and intuitive control of trim, heel, and roll while sailing, ensuring improved comfort and optimized performance.
Product Overview
The system automatically adjusts key parameters to reduce drag and enhance efficiency at speeds of up to 60 knots. Using an integrated gyrometric sensor and GPS, it actively eliminates roll, keeps the boat level, and ensures balanced turns. The integrator version allows full control through onboard multifunction displays, smartphones, and tablets, while also supporting up to three control panels for flexible helm configurations.
Each kit can be expanded with up to two additional pairs of S-Series interceptors, allowing a total of six interceptors managed by a single controller.
Kit Contents

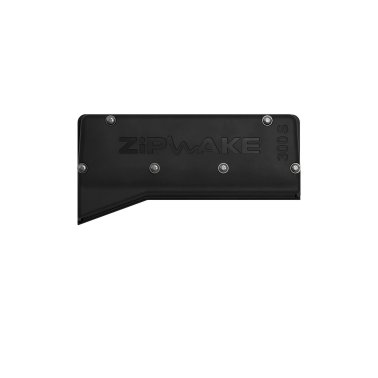

- One pair of S-Series interceptors

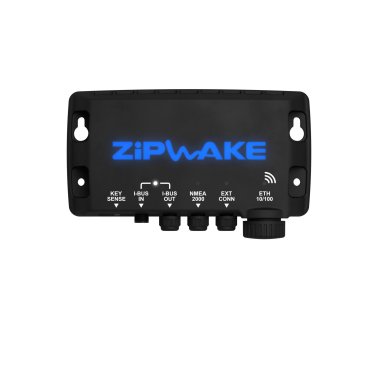

- Integrator controller (black box)
- Distribution box
- Control unit with 7 m cable
- Distribution box with 4 m power cable
- Interceptors with 3 m cable, through-hull fittings, and sheaths
Technical Data
Interceptor Width 300 mm Interceptor Height 149 mm Weight (Per Interceptor) 2.2 kg Blade Stroke 30 mm Power Consumption 25 W Supply Voltage 12 – 32 V Maximum Speed 60 knots Boat Length Range 10 – 50 ft System Type Integrator Packaging Packaging
Brand: Zipwake
Article: 2011519 -
