ID
1342035
$ 1,486.66
1-2 weeks delivery time
-
+
Zipwake IT450-S-V Interceptor 16° is a centerline-mounted V-shaped interceptor optimized for balanced trim and stability on suitable hulls, offering fast blade response and reliable performance at high speeds. Brand Zipwake, Article 2011483.
- Description
- Ask a Question
-
Zipwake 2011483 - IT450-S-V Interceptor - 16° Angle
The Zipwake IT450-S-V Interceptor with a 16° angle is a centerline-mounted, V-shaped interceptor designed to optimize trim and stability on boats with suitable deadrise angles. It is especially effective between twin outboards, sterndrives, or in dual propeller tunnel configurations.
Product Overview

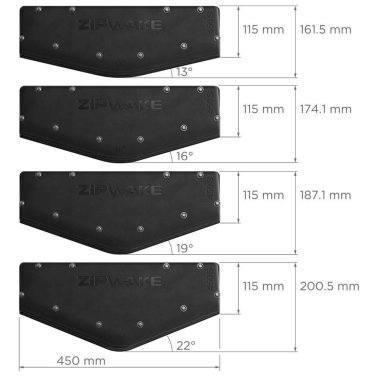

This interceptor is part of the V-shaped IT450-S series, covering hull deadrise angles from 11° to 24°. The 16° model offers balanced performance, precise blade control, and robust construction for demanding marine conditions.
Technical Data
Model IT450-S V16 Length 450 mm (18 in) Weight 3.3 kg (7.3 lbs) Maximum Boat Speed 60 knots Blade Stroke 30 mm (1.2 in) Blade Rate 20 mm/s (0.8 in/s) Thru-Hull Cable Fitting Concealed or above waterline Servo Actuator SU-S Cable Length 3 m (10 ft), extendable up to 6 m (20 ft) Cable Material PUR Connector M12 5-pin circular Connector Diameter 14.5 mm (0.57 in) Supply Voltage 12 – 32 V DC Power Consumption 25 W max Operating Temperature 0° to +40°C (+32° to +104°F) Storage Temperature -40° to +90°C (-40° to +194°F) Waterproof Rating IP68, 5 m (16 ft) Compliance CE, FCC
Brand: Zipwake
Article: 2011483 -
