Zipwake Chine Integrator KB450-S Stabilizer Kit provides advanced trim and roll stabilization with automatic adjustment up to 60 knots, integrator control, and support for multiple control panels. Brand Zipwake, Article 2011520.
- Description
- Ask a Question
-
Zipwake 2011520 - Chine Integrator KB450-S Stabilizer Kit
The Zipwake Chine Integrator KB450-S Stabilizer Kit is an advanced stabilizer solution from the Zipwake S Series Dynamic Control System. It provides accurate and intuitive control of trim, heel, and roll, significantly improving ride comfort and overall vessel handling.
Product Overview
With automatic adjustment of trim parameters, the system reduces hydrodynamic drag and optimizes performance up to 60 knots. Integrated gyrometric sensors and GPS eliminate roll, maintain a flat running attitude, and enable balanced turns. The integrator configuration allows control via onboard multifunction displays, smartphones, and tablets, and supports up to three optional control panels.
The system can be expanded with up to two additional pairs of S-Series interceptors, enabling a total of six interceptors controlled from a single integrator.
Kit Contents

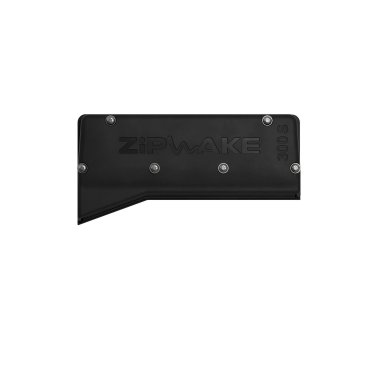

- One pair of S-Series interceptors

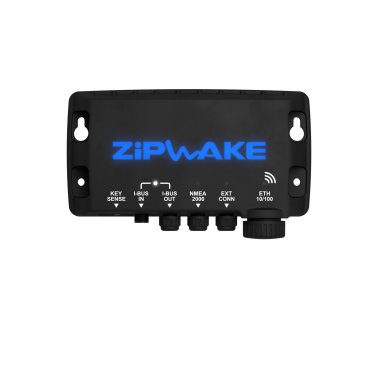

- Integrator controller (black box)
- Distribution box
- Control unit with 7 m cable
- Distribution box with 4 m power cable
- Interceptors with 3 m cable, through-hull fittings, and sheaths
Technical Data
Interceptor Width 450 mm Interceptor Height 149 mm Weight (Per Interceptor) 2.8 kg Blade Stroke 30 mm Power Consumption 25 W Supply Voltage 12 – 32 V Maximum Speed 60 knots Boat Length Range 10 – 50 ft System Type Integrator Packaging Packaging
Brand: Zipwake
Article: 2011520 -
