ID
1369875
$ 179.52
1-2 weeks delivery time
-
+
The VDO 360-081-038-003C pressure sensing sender provides stable, accurate monitoring from 0 to 25 bar for automotive pressure-measurement needs, including gear oil pressure and VDO engine monitoring. Built with a dual-pole insulated return design and a 1/8-27 NPTF thread, it integrates cleanly into oil, fuel, or air pressure circuits and supplies an analog resistance signal (10–184 ohm) for dependable gauge or instrument input.
- Description
- Ask a Question
-

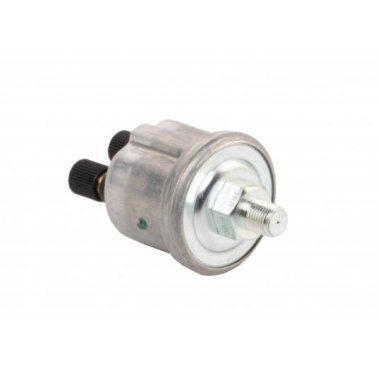

VDO Pressure Sensing Sender 0-25 Bar with Insulated Return
The VDO 360-081-038-003C is a pressure sender for accurate system monitoring across oil, fuel, and air pressure applications. Commonly used for gear oil pressure and VDO engine monitoring, it delivers an analog signal to instrumentation and monitoring systems, using a dual-pole insulated return design and a 1/8-27 NPTF mounting thread for secure installation.
Compatibility
- Oil pressure measurement circuits
- Fuel pressure measurement circuits
- Air pressure measurement circuits
- VDO engine monitoring applications
- Gear oil pressure monitoring applications
Product Details
- Brand: VDO
- Part Number: 360-081-038-003C
- Component Type: Pressure Sender
- Sensor Signal Type: Dual-pole insulated return
- Warning Contact: None
- Optional Warning Contact: VDO A2C59510886 Makepoint Switch
Features
- Measures pressure from 0 to 25 bar for reliable system monitoring
- Dual-pole insulated return signal design supports stable readings in vehicle instrumentation
- Designed for use with oil, fuel, and air pressure media
- Robust specification set for dependable performance in demanding operating environments
Technical Specifications

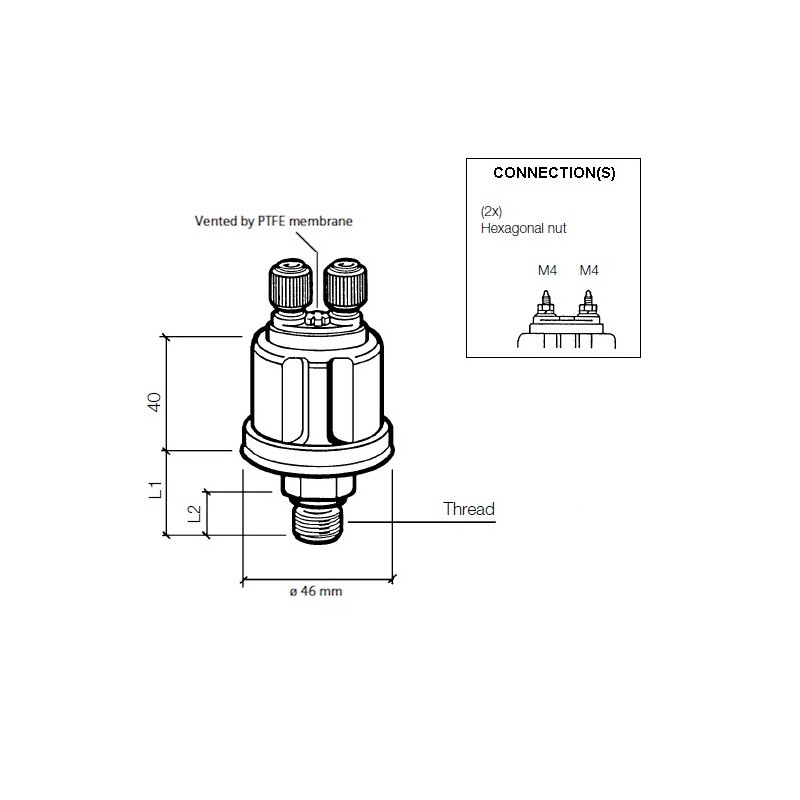

Pressure Measuring Range 0 - 25 Bar (0 - 362 PSI, 0 - 2500 KPa) Maximum Pressure 50 Bar during 2 seconds Thread 1/8 - 27 NPTF Thread Length Plus Nut (L1) 19.5 mm Thread Length (L2) 11 mm Tightening Torque 30 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil, Fuel, Air Operating Voltage 6 - 24 V DC Resistance Range 10 - 184 Ohm Pressure Sender Connector M4 hexagonal nut Type of Connection D HS Code 90269000 EAN Code 4103590691378 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 038 003C; 360/81/38/3C Catalog Reference VDO 2014 Vehicle Electronics Catalog, Page 126 - 127 -
