ID
1369876
$ 145.89
1-2 weeks delivery time
-
+

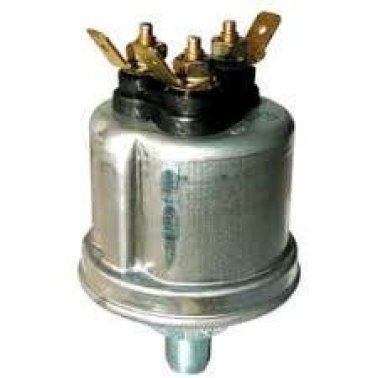

The VDO 360-081-039-002C pressure sensing sender is a precision 0–5 bar unit for dependable pressure monitoring in demanding environments, supporting media such as oil, fuel, and air. Built with a 1/8-27 NPTF thread for secure installation and a dual-pole insulated return signal, it provides a 10–184 ohm analog output for VDO engine monitoring and instrumentation, plus an integrated 0.80 bar warning contact that closes as pressure falls.
- Description
- Ask a Question
-
0–5 Bar Pressure Sensing Sender with Warning Contact
The VDO 360-081-039-002C is a 0–5 bar pressure sender designed for accurate, stable readings in low-pressure monitoring tasks. Intended for VDO engine monitoring and general pressure instrumentation, it combines a dual-pole insulated return signal with a built-in 0.80 bar warning contact that closes as pressure drops, helping protect systems that rely on consistent pressure feedback.
Compatibility
- VDO engine monitoring applications
- Low-pressure measurement applications (0–5 bar)
- Oil pressure measurement
- Fuel pressure measurement
- Air pressure measurement
Technical Specifications

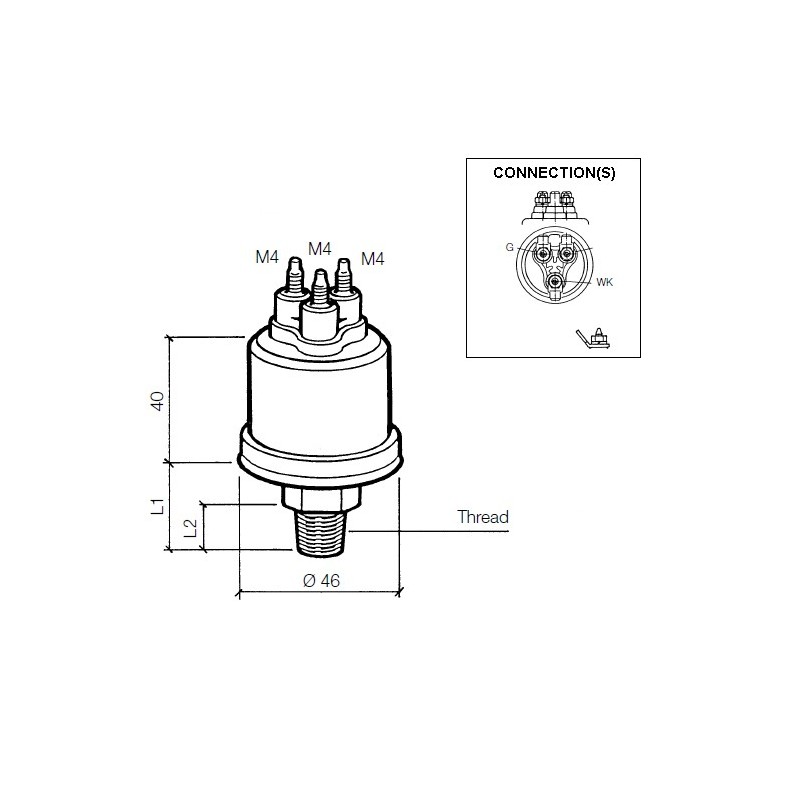

Pressure Measuring Range 0–5 bar (0–72.5 PSI, 0–500 kPa) Maximum Pressure 30 bar for 2 seconds Thread 1/8-27 NPTF Length of Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Installation Torque 30 Nm Operating Temperature -25°C to +100°C Pressure Medium Oil, Fuel, Air Operating Voltage 6–24 V DC Resistance Range 10–184 ohm Signal Type Analog Pressure Sensor Signal Dual-pole insulated return Warning Contact 0.80 bar ± 0.15 bar Warning Contact Switching Capacity Maximum 5 W, non-inductive Warning Contact Function Closes with falling pressure Pressure Sender Connector M4 AMP male 6.3 × 0.8 mm, 50° Warning Contact Connector M4 AMP male 6.3 × 0.8 mm, 50° Type of Connection B Connector Type M4 flat blade connector 6.3 × 0.8 mm HS Code 90269000 EAN Code 4103590691408 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 039 002C; 360/81/39/2C Catalog Reference VDO 2014 Vehicle Electronics Catalog, pages 128–129
Product Details
- Brand: VDO
- Part Number: 360-081-039-002C
- Component Type: Pressure sender
- Use Case: Engine oil pressure monitoring and low-pressure instrumentation
Features
- Accurate low-pressure sensing for consistent gauge and monitoring performance
- Integrated warning contact at 0.80 bar to support early low-pressure alerts
- Dual-pole insulated return signal for robust electrical integration
- 1/8-27 NPTF threaded connection for a secure, service-friendly fit
- Suitable for oil, fuel, and air pressure measurement within the rated range
-
