ID
1369877
$ 149.28
1-2 weeks delivery time
-
+
The VDO 360-081-039-003C pressure sending unit is built for dependable engine monitoring by measuring pressure from 0 to 10 bar and providing a low-pressure warning contact set at 0.80 bar. Designed for secure installation via a 1/8-27 NPTF thread, it supports accurate gauge readings through a 10–184 Ohm signal and uses a dual-pole insulated return with an insulated ground and three terminals for stable, noise-resistant operation in oil, fuel, or air pressure systems.
- Description
- Ask a Question
-

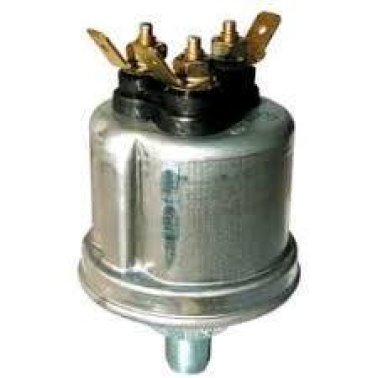

VDO 0–10 Bar Pressure Sending Unit With Warning Switch
The VDO 360-081-039-003C is a pressure sender designed for engine monitoring, combining an analogue output for accurate pressure indication with an integrated low-pressure warning contact. It measures from 0 to 10 bar and features a 0.80 bar warning switch that closes with falling pressure, helping protect engines and systems by alerting the operator early.
Compatibility
- VDO engine monitoring applications (engine oil pressure)
- Oil pressure systems
- Fuel pressure systems
- Air pressure systems
- 6–24 V DC electrical systems
- Ports threaded 1/8" - 27 NPTF male
Product Details
- Brand: VDO
- Part Number: 360-081-039-003C
- Component Type: Pressure Sender with warning contact
- Signal Type: Dual-pole insulated return (insulated ground), three terminals
Technical Specifications

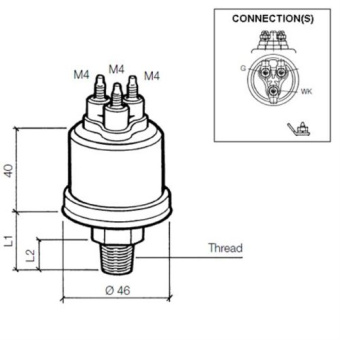

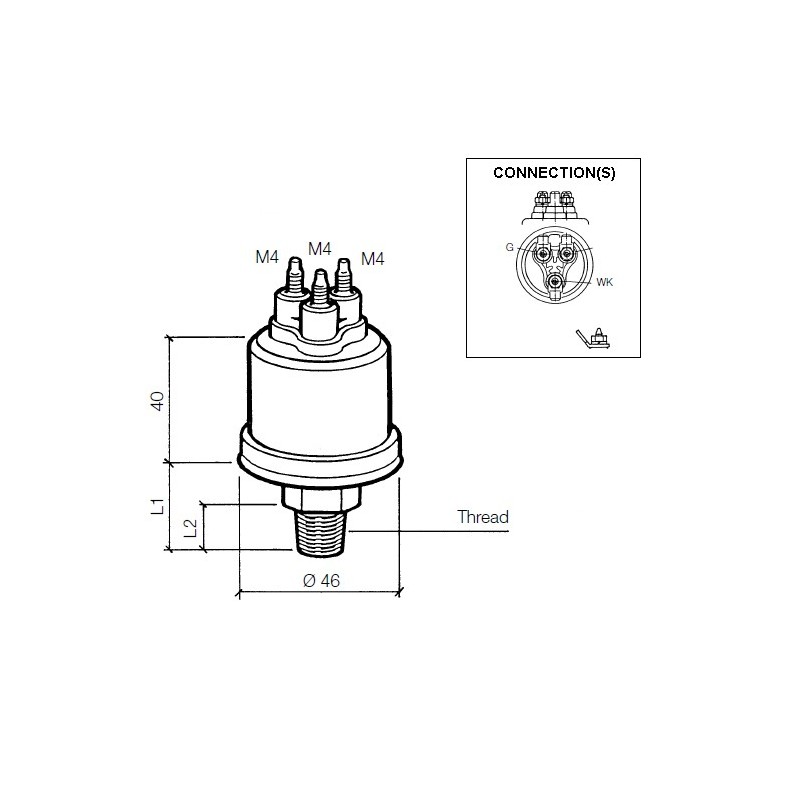

Pressure Measuring Range 0 - 10 Bar (0 - 145 PSI, 0 - 1000 KPa) Maximum Pressure 30 Bar for 2 seconds Thread 1/8 - 27 NPTF Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Tightening Torque 30 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil, Fuel, Air Operating Voltage 6 - 24 V DC Resistance Range 10 - 184 Ohm Warning Contact Setpoint 0.80 Bar ± 0.15 Bar Warning Contact Switching Capacity Maximum 5 Watt non-inductive Warning Contact Function Closes with falling pressure Pressure Sender Connector M4 AMP male 6.3 x 0.8 mm, 50° Warning Contact Connector M4 AMP male 6.3 x 0.8 mm, 50° HS Code 90269000 EAN Code 4103590691415 Weight 0.12 kg Country of Origin Germany Alternative Notation 360 081 039 003C; 360/81/39/3C
Features
- Accurate 0–10 bar pressure measurement for stable gauge readings
- Integrated 0.80 bar warning switch to support engine protection under low-pressure conditions
- Dual-pole insulated return with insulated ground for dependable signal integrity
- Designed to handle common monitoring media: oil, fuel, and air
- Robust electrical interface using M4 AMP male flat spade-style connectors
-
