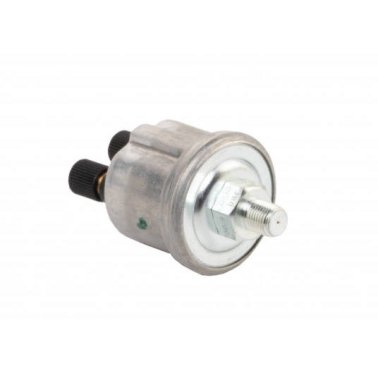

The VDO 360-081-038-001C pressure sender is a robust analog sender for precise pressure monitoring from 0 to 25 bar in vehicle engine monitoring and gear oil pressure applications. Built around a dual-pole insulated return design with an Insul/Ret feature for dependable insulation and retention, it supports stable readings across oil, fuel, and air pressure circuits. An M14 x 1.5 male thread simplifies installation, while the 10–184 Ohm output and 6–24 V DC operation make it a strong match for many VDO gauge and monitoring setups.
- Description
- Ask a Question
-
M14 x 1.5 Pressure Sender for 0–25 Bar Monitoring
The VDO 360-081-038-001C is an analog pressure sender designed for accurate pressure feedback in VDO engine monitoring and gear oil pressure measurement. Using a dual-pole insulated return signal (Insul/Ret feature), it helps maintain reliable readings in demanding operating conditions while supporting common pressure media such as oil, fuel, and air.
Compatibility
- VDO engine monitoring applications
- Gear oil pressure monitoring
- Oil pressure circuits (oil as pressure medium)
- Fuel pressure circuits (fuel as pressure medium)
- Air pressure circuits (air as pressure medium)
Product Details
- Brand: VDO
- Part Number: 360-081-038-001C
- Component Type: Pressure Sender
- Functionality: Gear oil pressure
- Signal Type: Analog (10–184 Ohm), dual-pole insulated return
- Warning Contact: None
Features
- Measures pressure from 0–25 bar for stable gauge or monitoring feedback
- Dual-pole insulated return design supports dependable signal integrity
- M14 x 1.5 thread for straightforward fitment into compatible ports
- Suitable for oil, fuel, and air pressure measurement
- Designed for VDO monitoring systems where repeatable readings matter
Technical Specifications

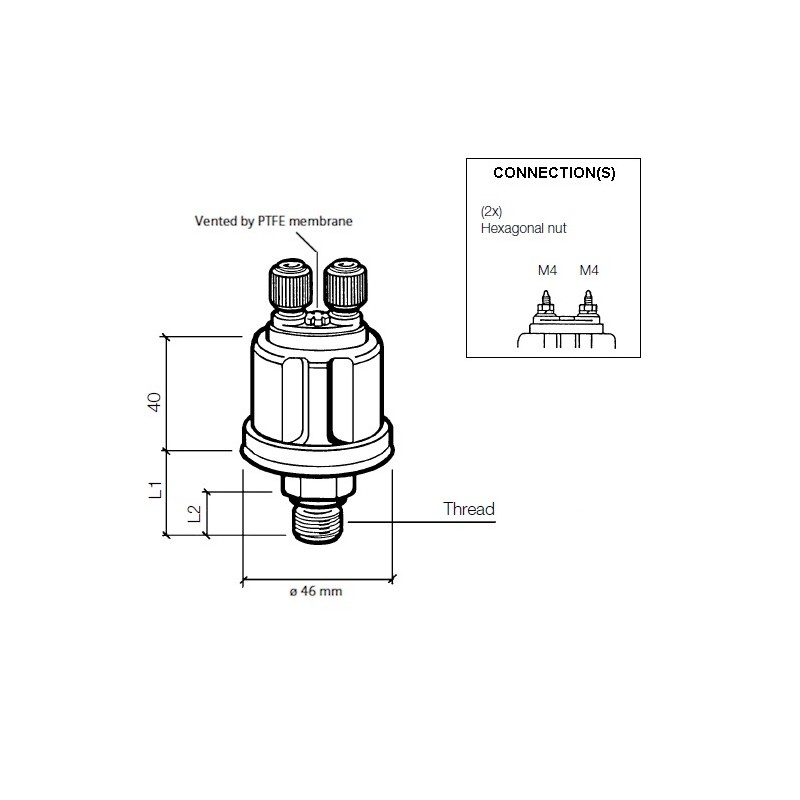

Pressure Measuring Range 0–25 Bar / 0–362 PSI / 0–2500 KPa Maximum Pressure 50 Bar for 2 seconds Thread M14 x 1.5 Male Length of Thread + Nut (L1) 20.5 mm Thread Length (L2) 12 mm Tightening Torque 60 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil, Fuel, Air Operating Voltage 6–24 V DC Resistance Range 10–184 Ohm Pressure Sensor Signal Dual-pole insulated return Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Sender Connector M4 Hexagonal Nut Type of Connection D HS Code 90269000 EAN 4103590691354 Weight 0.12 kg Country of Origin Germany Catalog Reference VDO 2014 Vehicle Electronics Catalog, Page 126–127 Alternative Notation 360 081 038 001C / 360/81/38/1C -
