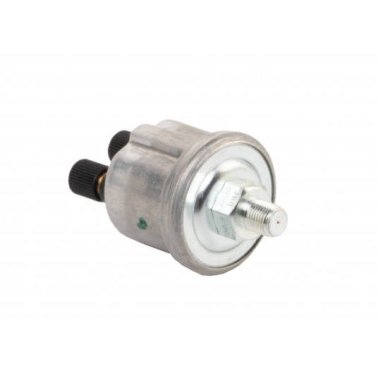

The VDO 360-081-038-002C pressure sender is a 0–25 bar monitoring sensor designed for accurate pressure feedback in industrial and automotive systems. Built with a 2-pin, dual-pole insulated return signal and a secure 3/8-18 NPTF threaded connection, it supports stable readings across oil, fuel, or air circuits, helping instrumentation and control systems track operating pressure with confidence.
- Description
- Ask a Question
-
0–25 Bar Pressure Sender with 3/8-18 NPTF Connection
The VDO 360-081-038-002C is a robust pressure sender for precise measurement from 0 to 25 bar in a wide range of industrial and automotive applications. Designed for dependable system feedback, it uses a 2-pin electrical interface with a dual-pole insulated return signal and a 3/8-18 NPTF thread for a secure installation in pressurized circuits.
Compatibility
- Automotive Applications
- Industrial Applications
Technical Specifications

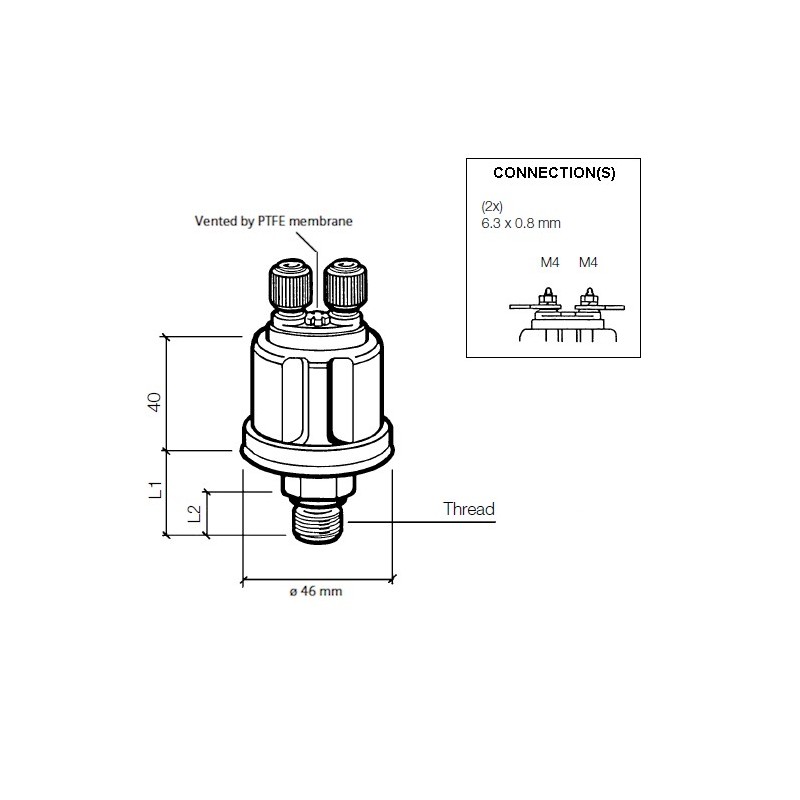

Brand VDO Part Number 360-081-038-002C Pressure Measuring Range 0–25 Bar (0–362 PSI, 0–2500 KPa) Maximum Pressure 50 Bar for 2 seconds Thread 3/8-18 NPTF Length of Thread + Nut (L1) 23.8 mm Thread Length (L2) 15.3 mm Torque 80 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil, Fuel, Air Operating Voltage 6–24 V DC Resistor Range 10–184 Ohm Pressure Sensor Signal Dual-Pole Insulated Return Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Connector M4 AMP Male 6.3 x 0.8 mm
Product Details
- Component Type: Pressure Sender
- Electrical Configuration: 2-pin
- Typical Use: Pressure monitoring for instrumentation and control systems
Features
- Accurate 0–25 bar output range for reliable system monitoring
- 3/8-18 NPTF thread supports a secure, stable fit in pressurized ports
- Suitable for common media including oil, fuel, and air
- Works across 6–24 V DC systems for versatile integration
- Supports optional makepoint switching via VDO A2C59510886 when needed
-
