ID
1129724
$ 120.32
1-2 weeks delivery time
-
+

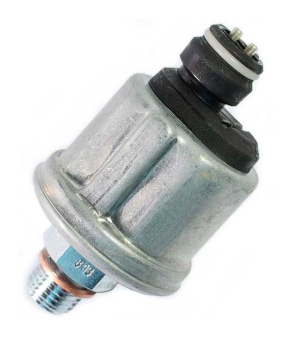

The VDO 360-081-051-012C pressure sender is an analog engine-oil pressure sensing unit for vehicle engine monitoring, measuring 0–10 bar (0–145 psi / 0–1000 kPa) with a 2-pole insulated return signal. Designed for robust installation on an M16 x 1.5 port and powered by 6–24 V DC, it supports oil, fuel, or air as the pressure medium and connects via a Bosch special push-on connector for dependable gauge or monitoring-system input.
- Description
- Ask a Question
-
VDO Analog 0–10 Bar Pressure Sender with M16 x 1.5 Connection
The VDO 360-081-051-012C is a pressure sender built for engine monitoring, converting pressure changes into an analog signal for instrumentation. Commonly used for engine oil pressure indication, it covers a 0–10 bar measuring range and uses a 2-pole insulated return output. The unit installs into an M16 x 1.5 threaded port and interfaces through a Bosch special push-on connector for a secure electrical connection.
Compatibility
- VDO engine monitoring applications (analog pressure sender signal)
- Systems with 6–24 V DC operating voltage
- Installations using an M16 x 1.5 male threaded sender port
- Wiring harnesses using a Bosch push-on connector 2.8 x 0.8 mm
- Pressure media: oil
- Pressure media: fuel
- Pressure media: air
Product Details
- Brand: VDO
- Part Number: 360-081-051-012C
- Component Type: Pressure sender
- Functionality: Engine oil pressure
- Signal Type: Analog (resistive)
- Warning Contact: None (optional VDO A2C59510886 make-point switch)
- EAN Code: 4103590691446
- HS Code: 90269000
- Weight: 0.14 kg
- Country of Origin: Germany
- Alternative Notation: 360 081 051 012C; 360/81/51/12C
Technical Specifications
Pressure Measuring Range 0–10 bar; 0–145 psi; 0–1000 kPa Maximum Pressure 30 bar (during 2 seconds) Operating Voltage 6–24 V DC Resistor Range 10–184 Ohm Sensor Signal 2-pole insulated return Thread M16 x 1.5 Length Thread + Nut (L1) 20.5 mm Thread Length (L2) 12 mm Tightening Torque 100 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil; fuel; air Pressure Sender Connector Bosch special push-on connector (2.8 x 0.8 mm)
Features
- 0–10 bar measuring range for dependable engine pressure monitoring
- Supports multiple media (oil, fuel, or air) for versatile installation use
- Stable analog resistive output (10–184 Ohm) for VDO-style instrumentation
- 2-pole insulated return signal design for clean, reliable readings
- High-pressure tolerance up to 30 bar for short-duration pressure spikes
-
