ID
1129721
$ 152.72
1-2 weeks delivery time
-
+
The VDO 360-081-038-008C pressure-sensing unit provides stable, accurate pressure feedback for engine monitoring and drivetrain lubrication checks, making it well suited as a transmission and gear oil pressure sender. Covering 0–28 bar with an analog 10–184 Ohm output and a single-pole common ground signal, it integrates easily into 6–24 V DC electrical systems, while the 1/8-27 NPTF male thread supports a secure installation for oil, fuel, or air pressure measurement.
- Description
- Ask a Question
-

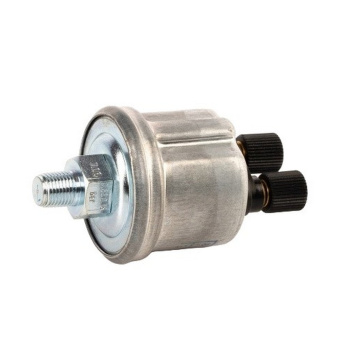

VDO Pressure Sender for Oil, Fuel, or Air Monitoring (0–28 Bar)
Built for demanding engine monitoring and drivetrain applications, the VDO 360-081-038-008C is a robust pressure sender commonly used for transmission and gear oil pressure measurement. With an analog resistance output designed to work with VDO-style instrumentation, it helps deliver dependable pressure readings across a wide operating range.
Compatibility
- VDO engine monitoring applications
- Gear oil pressure monitoring
- Transmission oil pressure monitoring
- Oil pressure measurement
- Fuel pressure measurement
- Air pressure measurement
Technical Specifications
Pressure Measuring Range 0–28 Bar; 0–406 PSI; 0–2800 KPa Maximum Pressure 50 Bar (2 seconds) Thread 1/8-27 NPTF male Length Thread + Nut (L1) 19.5 mm Thread Length (L2) 11 mm Installation Torque 30 Nm Operating Temperature -25 °C to +100 °C Pressure Medium Oil; fuel; air Operating Voltage 6–24 V DC Signal Output (Resistance Range) 10–184 Ohm Sensor Signal Single-pole common ground Warning Contact None Optional Warning Contact VDO A2C59510886 Makepoint Switch Pressure Sender Connector M4 plastic knurled nut Type of Connection A HS Code 90269000 EAN Code 4103590949745 Weight 0.12 kg Country of Origin Germany
Product Details
- Brand: VDO
- Part Number: 360-081-038-008C
- Category: Pressure senders
- Functionality: Gear oil pressure
- Alternative Notation: 360 081 038 008C; 360/81/38/8C
- Reference: VDO 2014 Vehicle Electronics Catalog, Page 121–122
- Retail Package: VDO 360-081-038-008C pressure sender
Features
- Wide measuring range suited to heavy-duty pressure monitoring (0–28 bar)
- Analog resistance signal (10–184 Ohm) for reliable gauge integration
- Designed for harsh operating conditions with defined maximum pressure capability
- 1/8-27 NPTF male thread supports secure installation in pressure ports
- Supports oil, fuel, and air pressure measurement for versatile system use
-
