The VDO 350-030-011C brake pressure gauge is a compact 52 mm Cockpit International instrument designed for clear, reliable pressure monitoring from 0 to 10 bar in 12 V vehicle dashboards. Built for VDO engine monitoring and cockpit-style panels, it works with a VDO pressure sender signal range of 10 to 184 Ohm and uses AMP male blade connectors for secure wiring, while reverse polarity protection and low current draw (82 mA without illumination) support dependable day-to-day operation.
- Description
- Ask a Question
-

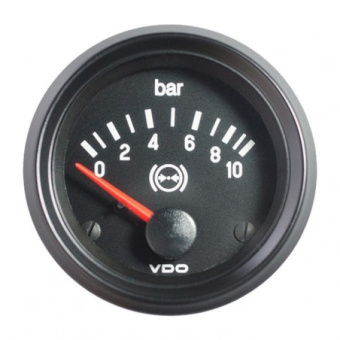

Cockpit International 52 mm Brake Pressure Gauge (0-10 Bar, 12 V)
The VDO 350-030-011C is a Cockpit International series brake pressure gauge made for clean integration into vehicle dashboards and instrument panels. With an analogue display and a 0 to 10 bar measurement range, it provides consistent pressure feedback for monitoring and control in 12 V systems, and it connects to a matching VDO pressure sender signal.
Compatibility
- Vehicles with 12 V electrical systems (operating range 11–16 V DC)
- Analogue pressure-sender systems using a 10–184 Ohm signal range
- Dashboards with a 52 mm (2 1/16 inch) panel cutout
Product Details
- Brand: VDO
- Series: Cockpit International
- Component Type: Brake pressure gauge
- Application: VDO engine monitoring
- Color: Black
- Packaging: VDO instruments OEM bulk (10 pieces)
Features
- Clear 0–10 bar scale for accurate pressure monitoring
- Compact 52 mm format for easy cockpit-style dashboard installation
- Reverse polarity protection for more robust electrical integration
- IP64 front protection class for a well-protected instrument face
- AMP male blade connectors for straightforward, secure wiring
Technical Specifications
Part Number 350-030-011C Functionality Brake pressure Pressure Measurement Range 0–10 bar Sender Signal Range 10–184 Ohm Operating Voltage 11–16 V DC Current Consumption (Without Illumination) 82 mA Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Bracket Locking Height 0.5–8 mm Electrical Connections AMP male blade connector 6.3 × 0.8 mm (3x) Illumination Connection AMP male blade connector 6.3 × 0.8 mm (2x) Dial Illumination Floodlight 12 V, 3.4 W (white, green, red); 24 V, 3 W optional Deflection Angle 90° Pointer Red backlight Lens Single anti-glare Bezel Triangular black Front Protection Class IP64 (DIN 40050) Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C CE Standard Yes EMC Test According to EN 13309 and ISO 13766 Housing Plastic flame retardant Country of Origin Malaysia EAN Code 4103590690609 HS Code 85122000 Weight 1.00 kg
OEM Bulk Package (10 Pieces)
- VDO Cockpit International 350-030-011C pressure gauge
- Steel bracket, zinc-plated and chromated
- Connecting material ordered separately
-
