ID
1347254
$ 15,637.47
1-2 weeks delivery time
-
+
The Simrad HALO 3004 Open Array Radar is a 130W solid-state system with 6 m to 96 nm range, dual range operation, advanced pulse compression, VelocityTrack™, ZoneTrack™, Dangerous Target Alerts, and comes with a 4 ft array and 20 m cable.
- Description
- Ask a Question
-

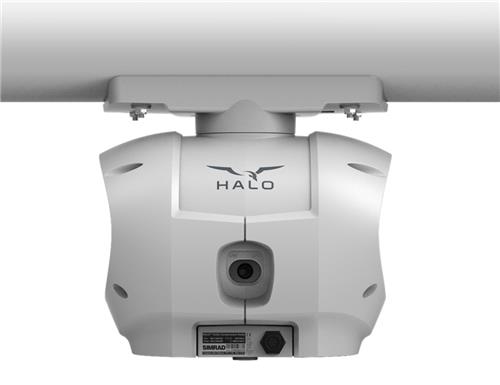

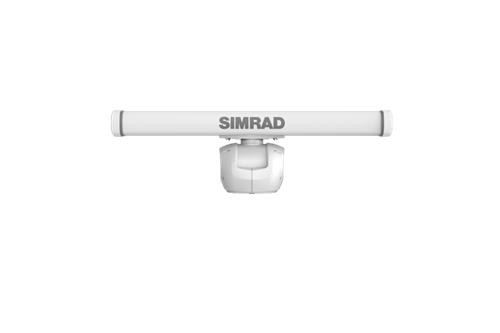

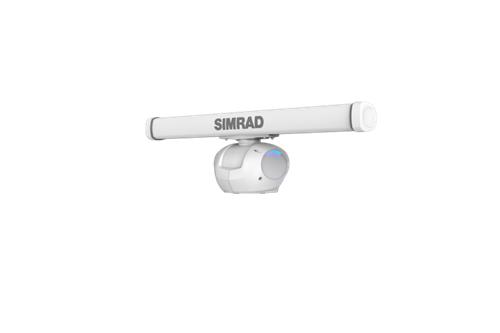

Simrad HALO® 3004 Open Array Radar With 4ft Array And 20m Cable
The Simrad HALO® 3004 Open Array Radar is a high-performance 130W solid-state radar with detection from 6 metres up to 96 nautical miles. It delivers advanced pulse compression technology with beam sharpening for precise long-range and short-range target identification.
Dual Range operation allows monitoring of distant weather and nearby traffic at the same time. Integrated ZoneTrack™, VelocityTrack™ Doppler technology and Dangerous Target Alerts improve collision avoidance and situational awareness. The system is designed for robust marine use with IPX6 protection and includes a 4 ft array with 20 m cable.
Key Features
- 130W solid-state radar
- Range from 6 m up to 96 nm
- Advanced pulse compression with beam sharpening
- Simultaneous Dual Range operation
- Harbour, Offshore, Weather and Bird modes
- Track up to 50 targets with ZoneTrack™
- VelocityTrack™ Doppler technology
- Dangerous Target Alerts for radar and AIS targets
- Ready instantly from standby (16–25 seconds from power-on)
- Includes 4 ft open array and 20 m cable
Technical Data
Article 000-15763-001 Series HALO 3000 Power Output 130 W Range 6 m – 96 nm Array Size 4 ft Cable Length 20 m Dimensions (W x H x D) 324 mm x 429 mm x 339 mm Weight 30 kg Protection Class IPX6 Supply Voltage 12 / 24 V DC (via RI-50) Power Consumption (Max) 250 W (Peak, 12 V) Power Consumption (Typical) 45–75 W Recommended Fuse 25 A (12 V) / 15 A (24 V) Operating Temperature -25°C to +55°C Ethernet 1 x 100 Mbit RJ45 (via RI-50, adapter to 5-pin yellow supplied) Color White Sales Unit 1 Piece
Brand: Simrad (Article Code: 000-15763-001) (Barcode: 9420064118168)
-
