Product Description

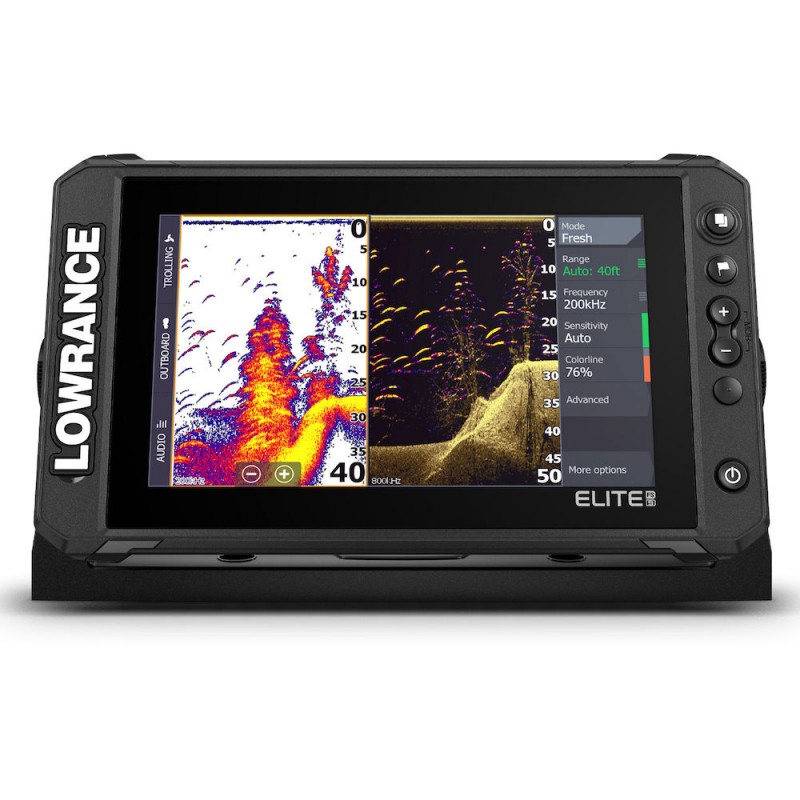

The Lowrance Elite FS 7 Fishfinder is a multifunction marine display built for advanced sonar imaging, navigation, and system integration. It features a high-resolution multitouch screen with SolarMAX™ Full HD technology for clear visibility from multiple angles and intuitive touch control.

Sonar And Imaging Technology

Active Imaging™ combines CHIRP, SideScan, and DownScan imaging using the compatible 3-in-1 transducer to deliver highly detailed underwater structure and fish targets. The system is designed for superior image clarity and extended coverage compared to standard sonar technologies.

FishReveal™ improves target separation by combining CHIRP sonar with imaging detail. At 800 kHz, it delivers ultra-clear and highly detailed images with a range up to 36 m. At 455 kHz, Active Imaging can extend coverage up to 60 m while maintaining strong image quality.

Active Target compatibility allows connection to a high-definition live sonar module for real-time underwater tracking and advanced fish targeting performance.

Mapping And Navigation Features

C-MAP Genesis Live provides real-time mapping with intuitive controls for contour transparency and density. Depth contours can be displayed in intervals down to 15 cm. Users can customize bathymetric colors and save maps directly to a MicroSD card for continuous use.

Dock-to-dock Autorouting and Easy Routing calculate suggested routes based on chart data and vessel characteristics including draft, width, and height. If vessel data is missing, it will be requested during setup. Requires Navionics Platinum charts with subscription or C-MAP Discover/Reveal cartography. This function is an aid only and should not replace safe navigation practices or be used as the sole navigation reference.

Connectivity And Integration

Full network connectivity enables sharing of sonar, cartography, and user data between Elite FS and HDS displays via Wi-Fi and Ethernet. The system also supports integration with Halo radar systems (5605504 / 505).

Mobile device integration allows viewing of calls and messages from compatible smartphones directly on the display.

Engine data integration supports monitoring of compatible Yamaha, Mercury, Suzuki, and Evinrude engines via NMEA 2000. Software updates may be required for full compatibility.

Technical Data

Installation And Design

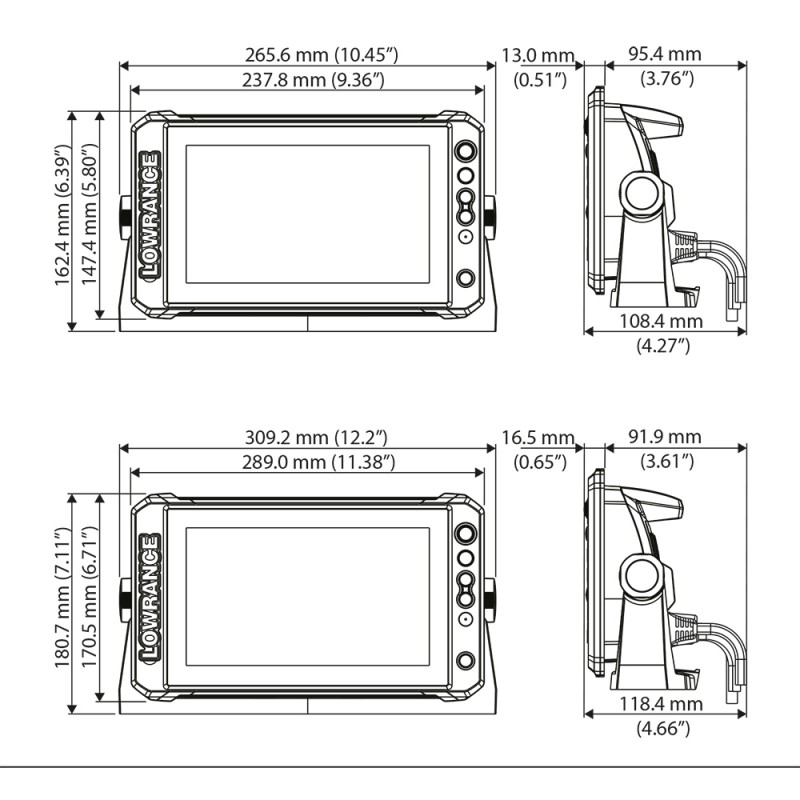

The unit features a design similar to HDS models for recessed mounting compatibility. A protective cover is included for added protection when not in use.

Brand: Lowrance
