Product Description

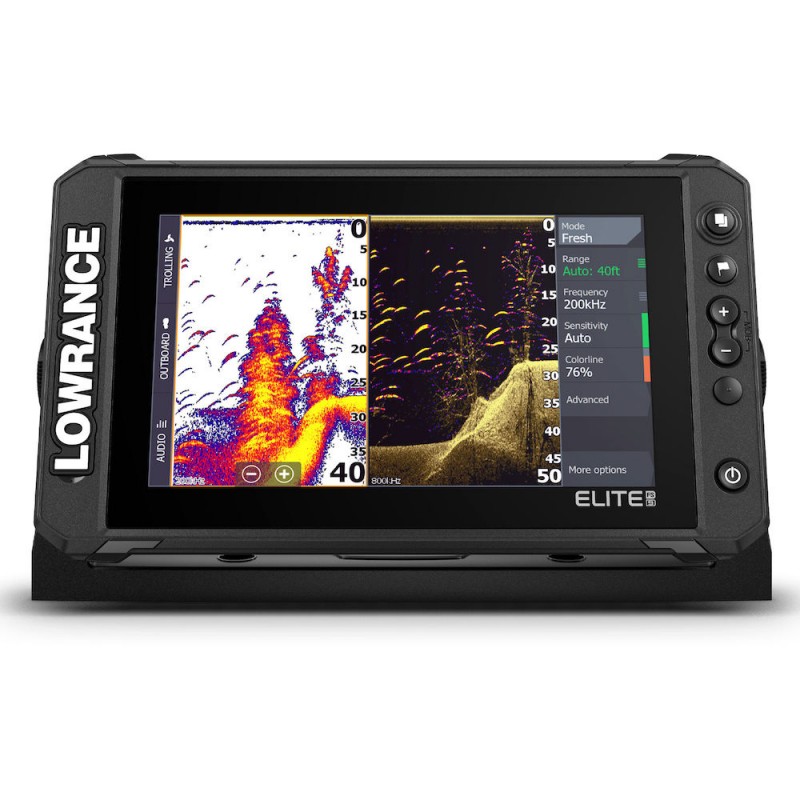

The Lowrance Elite FS 7 HDI Fishfinder is a multifunction marine display designed for high-performance sonar imaging, navigation support, and system integration. It features a SolarMAX™ Full HD multitouch touchscreen that delivers sharp images with wide viewing angles and responsive touch control.

Sonar And Imaging Technology

Active Imaging™ works together with CHIRP, SideScan, and DownScan technologies through the 3-in-1 transducer system to provide detailed underwater imaging and structure recognition. The included HDI transducer (83/200 kHz + 455/800 kHz, transom mount) delivers combined high and low frequency performance for both depth range and fine detail.

FishReveal™ enhances target visibility by combining sonar and imaging data for improved fish detection clarity. At 800 kHz, it produces ultra-detailed, crystal-clear images, while 455 kHz mode extends range up to 60 m and maintains strong image performance beyond 36 m.

Active Target compatibility allows connection to a high-definition sonar module for real-time tracking and advanced underwater observation.

Mapping And Navigation

C-MAP Genesis Live enables real-time mapping with adjustable contour transparency and density, supporting depth intervals down to 15 cm. Bathymetric colors can be customized and map data can be saved directly to a MicroSD card for continuous use.

Dock-to-dock Autorouting and Easy Routing calculate optimized route points based on chart data and vessel dimensions such as draft, width, and height. If vessel data is missing, the system prompts setup automatically. Requires Navionics Platinum charts with subscription or C-MAP Discover/Reveal cartography. This function is an aid only and does not replace safe navigation practices.

Connectivity And Integration

Full network connectivity allows seamless sharing of sonar, cartography, and user data between Elite FS and HDS systems via Wi-Fi and Ethernet. The system also supports integration with Halo radar units (5605504 / 505).

Mobile device integration enables display of calls and messages from compatible smartphones directly on the unit.

Engine monitoring supports Yamaha, Mercury, Suzuki, and Evinrude engines via NMEA 2000, with software updates required for full compatibility in some cases.

Technical Data

Installation And Design

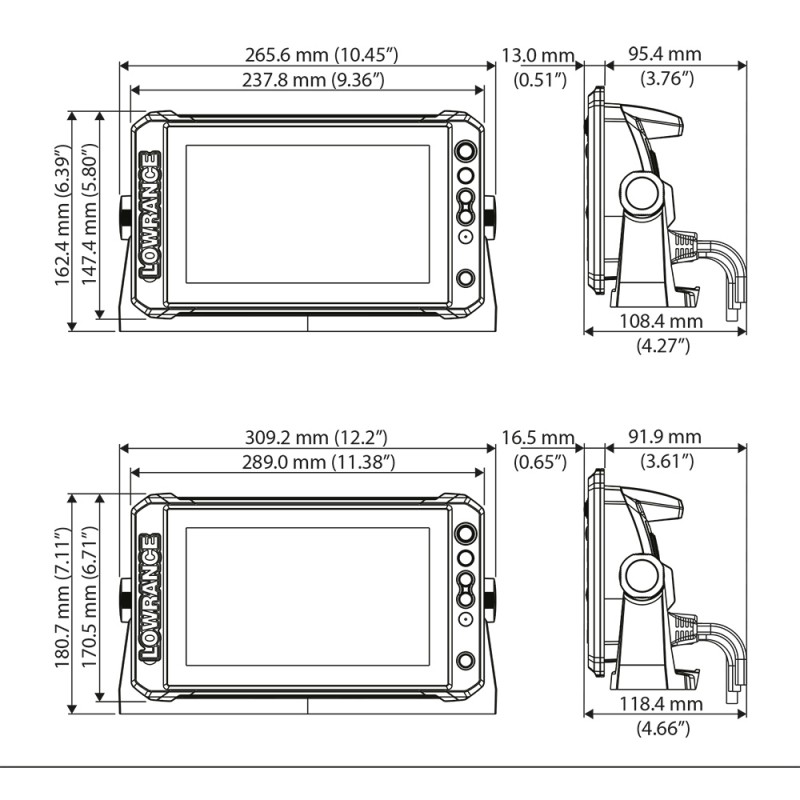

The unit is designed with dimensions similar to HDS series for recessed mounting compatibility. A protective cover is included.

Brand: Lowrance
