Product Description

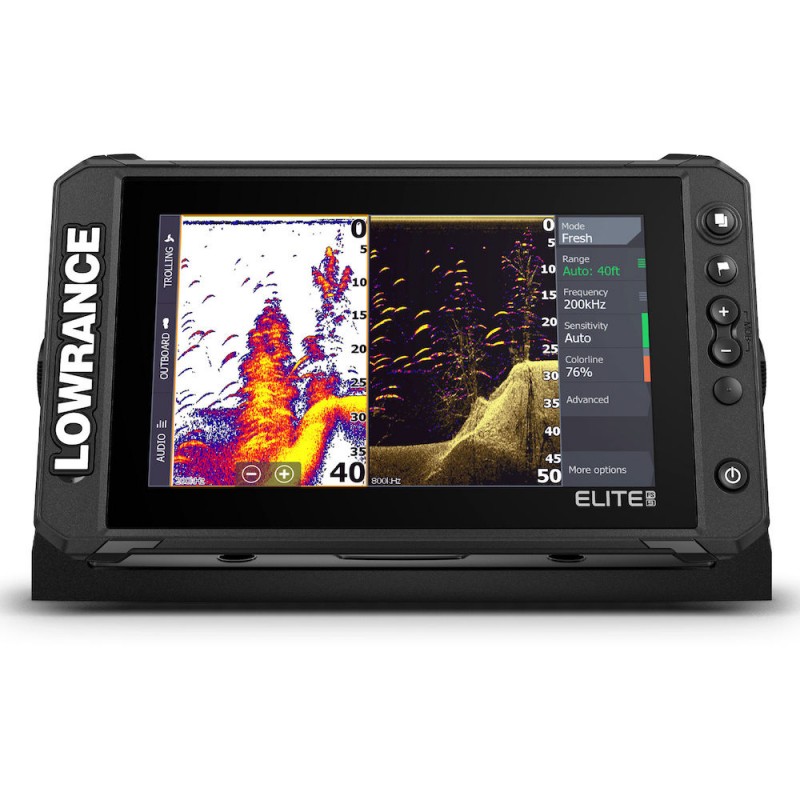

The Lowrance Elite FS 9 Fishfinder is a multifunction marine display designed for advanced sonar imaging, navigation, and full system integration. It features a SolarMAX™ Full HD multitouch touchscreen that provides sharp, high-resolution images with wide viewing angles and smooth touch control.

Sonar And Imaging Technology

Active Imaging™ supports CHIRP, SideScan, and DownScan technologies when paired with the compatible 3-in-1 transducer, delivering detailed underwater structure and target separation with high clarity and extended coverage.

FishReveal™ enhances fish detection by combining sonar and imaging data for improved target definition. At 800 kHz, it produces ultra-detailed crystal-clear images, while 455 kHz mode extends coverage beyond 36 m up to 60 m with maintained detail quality.

Active Target compatibility allows connection to a high-definition sonar module for real-time underwater tracking and advanced fishing performance.

Mapping And Navigation

C-MAP Genesis Live enables real-time mapping with customizable contour density and transparency, supporting depth intervals down to 15 cm. Users can adjust bathymetric colors and save maps directly to MicroSD for continuous use.

Dock-to-dock Autorouting and Easy Routing calculate optimized routes based on chart data and vessel characteristics including draft, width, and height. If vessel data is not entered, the system prompts setup automatically. Requires Navionics Platinum charts with subscription or C-MAP Discover/Reveal cartography. This function is an aid only and does not replace safe navigation practices.

Connectivity And Integration

Full network connectivity enables sharing of sonar, cartography, and user data between Elite FS and HDS displays via Wi-Fi and Ethernet. The system also supports integration with Halo radar units (5605504 / 505).

Mobile device integration allows display of calls and messages from compatible smartphones directly on the unit.

Engine data integration supports Yamaha, Mercury, Suzuki, and Evinrude engines via NMEA 2000, with software updates required for full compatibility in some cases.

Technical Data

Installation And Design

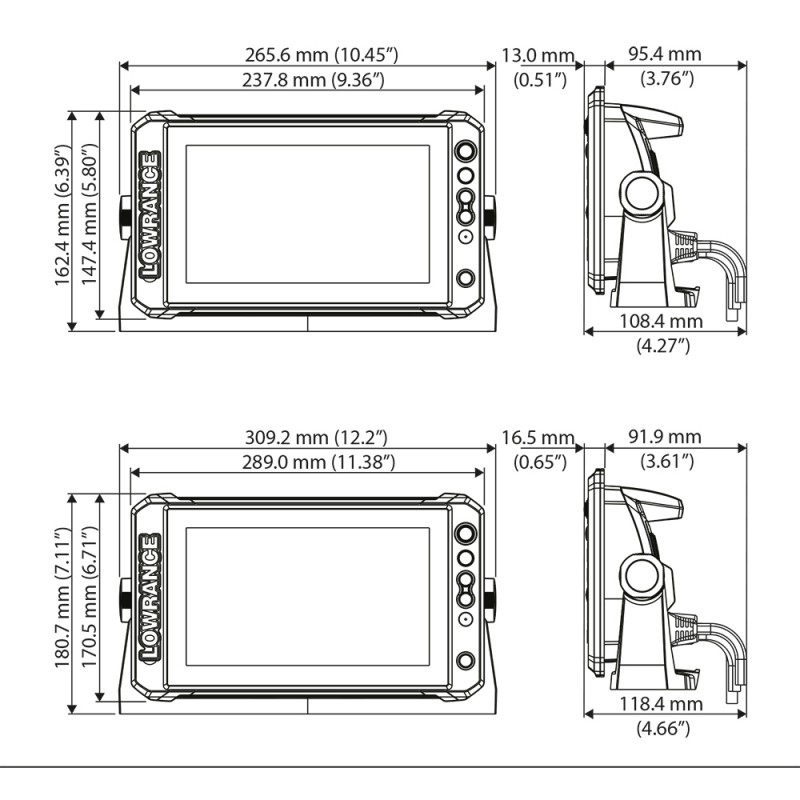

The unit is designed with dimensions similar to HDS series for recessed mounting compatibility. A protective cover is included.

Brand: Lowrance
