Product Description

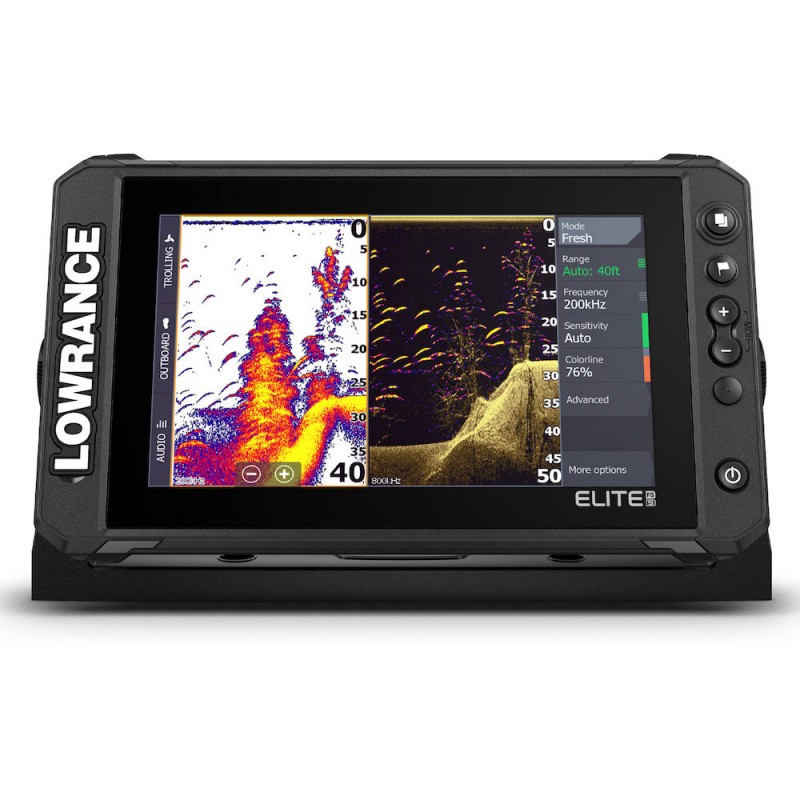

The Lowrance Elite FS 7 Fishfinder is a multifunction marine display designed for advanced sonar imaging, navigation, and system networking. It features a SolarMAX™ Full HD multitouch touchscreen that delivers high-resolution images with wide viewing angles and simple touch control for easy operation.

Sonar And Imaging Technology

Active Imaging™ 3-in-1 transducer technology combines CHIRP, SideScan, and DownScan imaging to deliver highly detailed underwater structure and target definition. The system provides exceptional clarity and extended coverage compared to conventional sonar systems.

FishReveal™ enhances fish target visibility by combining sonar and imaging data for improved clarity and identification. At 800 kHz, it provides ultra-detailed, crystal-clear images while maintaining performance. At 455 kHz, Active Imaging can extend range beyond 36 m up to 60 m with strong detail retention.

Active Target compatibility allows connection to a high-definition sonar module for real-time underwater tracking and advanced fishing performance.

Mapping And Navigation

C-MAP Genesis Live enables real-time mapping with customizable contour density and transparency, supporting depth intervals down to 15 cm. Bathymetric colors can be adjusted and map data can be saved directly to MicroSD for continuous use.

Dock-to-dock Autorouting and Easy Routing calculate route suggestions based on chart data and vessel specifications including draft, width, and height. If vessel data is missing, setup is requested automatically. Requires Navionics Platinum charts with subscription or C-MAP Discover/Reveal cartography. This function is an aid only and does not replace safe navigation practices.

Connectivity And Integration

Full network connectivity enables sharing of sonar, cartography, and user data between Elite FS and HDS displays via Wi-Fi and Ethernet. The system supports integration with Halo radar systems (5605504 / 505).

Mobile device integration allows viewing of calls and messages from compatible smartphones directly on the display.

Engine data integration supports Yamaha, Mercury, Suzuki, and Evinrude engines via NMEA 2000, with software updates required for full compatibility in some cases.

Technical Data

Installation And Design

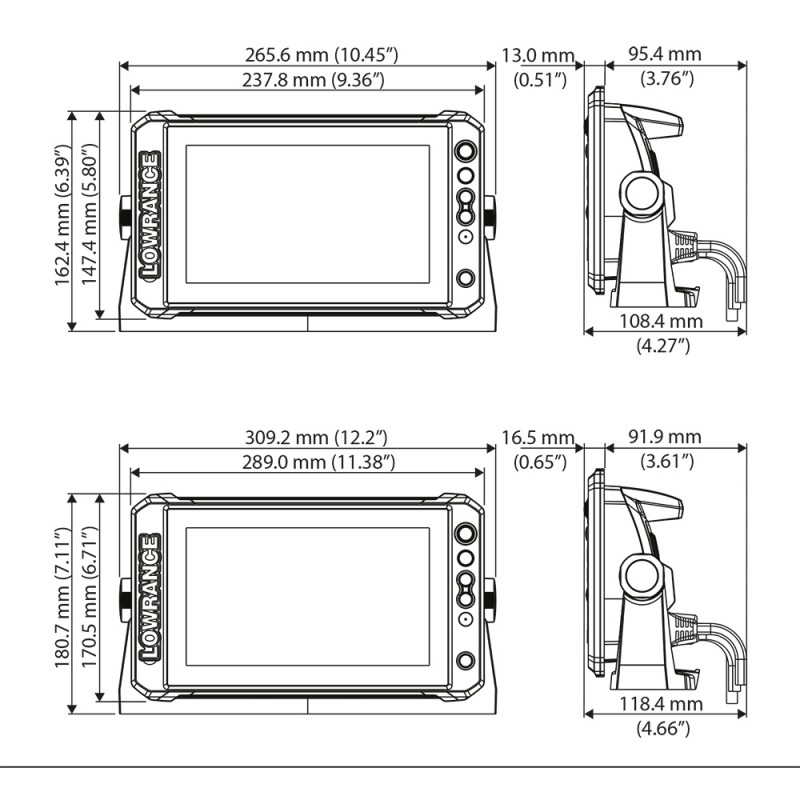

The unit is designed with dimensions similar to HDS series for recessed mounting compatibility. A protective cover is included.

Brand: Lowrance
