Product Description

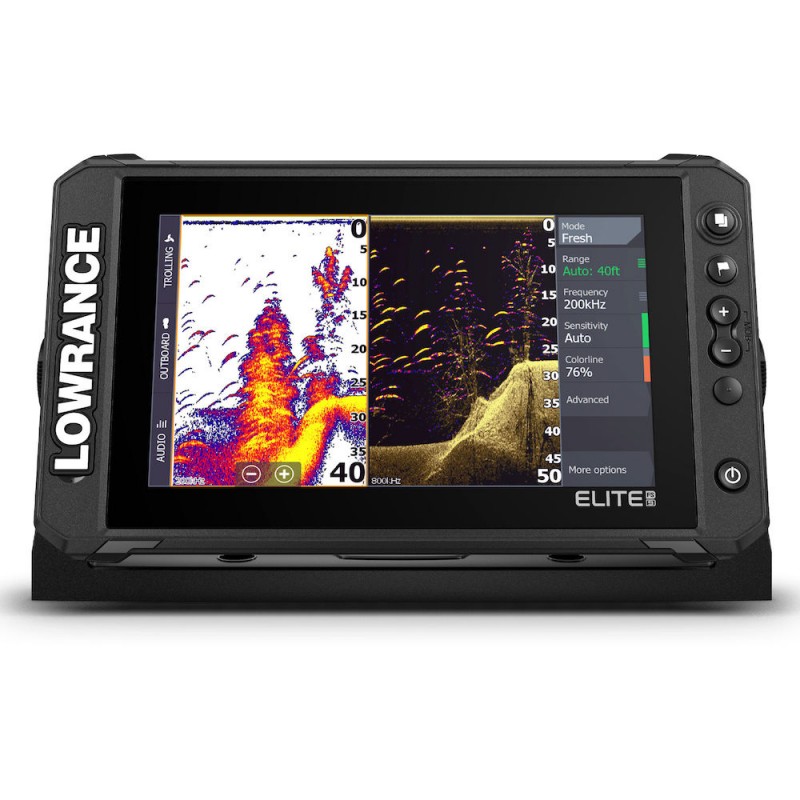

The Lowrance Elite FS 9 Fishfinder is a multifunction marine display built for advanced sonar imaging, navigation, and full system integration. It features a SolarMAX™ Full HD multitouch touchscreen that delivers high-resolution images with wide viewing angles and smooth touch control for easy operation in marine environments.

Sonar And Imaging Technology

Active Imaging™ 3-in-1 transducer technology combines CHIRP, SideScan, and DownScan imaging to deliver detailed underwater structure, fish targets, and high-definition clarity across a wide area. This system provides strong performance and enhanced imaging quality compared to traditional sonar solutions.

FishReveal™ improves fish target visibility by combining sonar and imaging data for clearer and more precise detection. At 800 kHz, it delivers ultra-detailed images, while 455 kHz mode extends coverage beyond 36 m up to 60 m while maintaining strong image quality.

Active Target compatibility enables connection to a high-definition sonar module for real-time underwater tracking and advanced fishing performance.

Mapping And Navigation

C-MAP Genesis Live provides real-time mapping with customizable contour density and transparency, supporting depth intervals down to 15 cm. Users can also customize bathymetric colors and save map data directly to MicroSD for continuous use.

Dock-to-dock Autorouting and Easy Routing generate route suggestions based on chart data and vessel parameters including draft, width, and height. If vessel information is missing, the system prompts setup automatically. Requires Navionics Platinum charts with subscription or C-MAP Discover/Reveal cartography. This feature is an aid only and should not replace safe navigation practices.

Connectivity And Integration

Full network connectivity enables sharing of sonar, cartography, and user data between Elite FS and HDS displays via Wi-Fi and Ethernet. The system also supports integration with Halo radar systems (5605504 / 505).

Mobile device integration allows users to view calls and messages from compatible smartphones directly on the display.

Engine data integration supports Yamaha, Mercury, Suzuki, and Evinrude engines via NMEA 2000, with software updates required for full compatibility in some cases.

Technical Data

Installation And Design

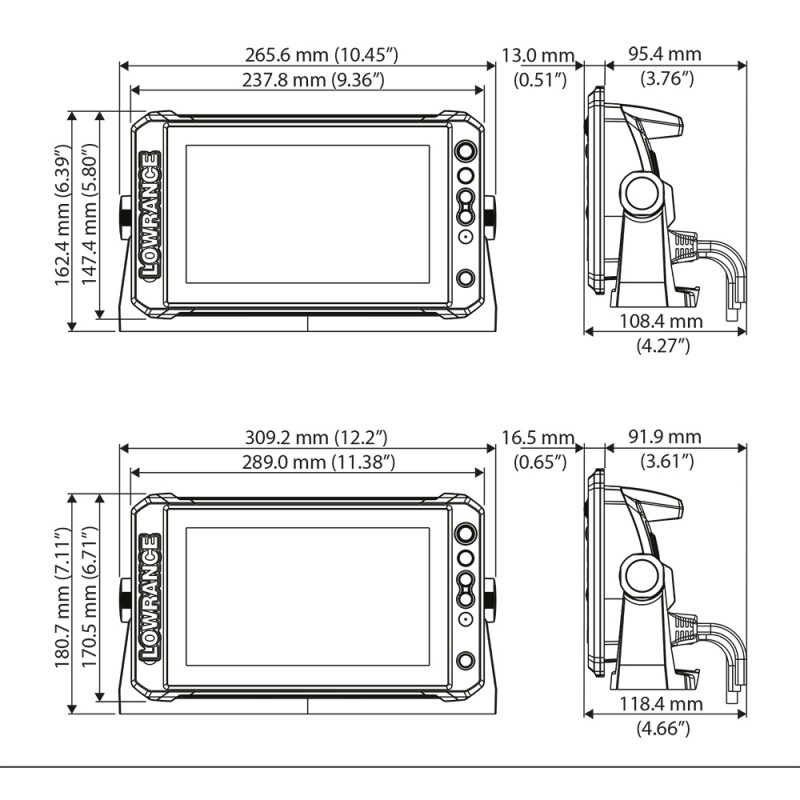

The unit is designed with dimensions similar to HDS series for recessed mounting compatibility. A protective cover is included.

Brand: Lowrance
