Osculati Fastar DIN 7505A Stainless Steel Countersunk Wood Screws Ø3–6 mm

ID 1402547

$ 5.88

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

6 pcs
8 pcs
10 pcs
14 pcs
18 pcs
20 pcs

Osculati Fastar DIN 7505A wood screws feature a flat countersunk head with a cross-recessed drive and are designed for fastening chipboard, particleboard and other suitable wood-based materials. Their threaded construction provides engagement in compatible substrates, while the countersunk head allows a flush installation in a suitably prepared mounting surface. The stainless steel construction provides corrosion resistance for appropriate marine, outdoor and general woodworking applications. Available in six sizes from 3×15 to 6×40 mm, these screws are supplied in blister packs containing 6 to 20 pieces, depending on the selected variant.

Description
Ask a Question

Osculati Fastar DIN 7505A Stainless Steel Countersunk Wood Screws Ø3–6 mm

Osculati Fastar wood screws are designed for fastening chipboard, particleboard and other suitable wood-based materials. They feature a flat countersunk head, a cross-recessed drive and a threaded shaft for mechanical engagement with compatible wooden substrates.

The flat countersunk head fits into a suitably prepared recess, allowing the head to sit flush with the surrounding surface. The cross-recessed drive provides convenient installation using a compatible screwdriver or driver bit.

These screws are identified in the Osculati catalogue as Fastar wood screws conforming to DIN 7505A. They can be used for fastening suitable wood panels, furniture components and other compatible assemblies. Depending on material characteristics and installation conditions, a pilot hole may be necessary.

The stainless steel construction provides corrosion resistance for suitable marine, outdoor and general fastening applications. The range includes six dimensional configurations, with nominal diameters from 3 to 6 mm and lengths from 15 to 45 mm.

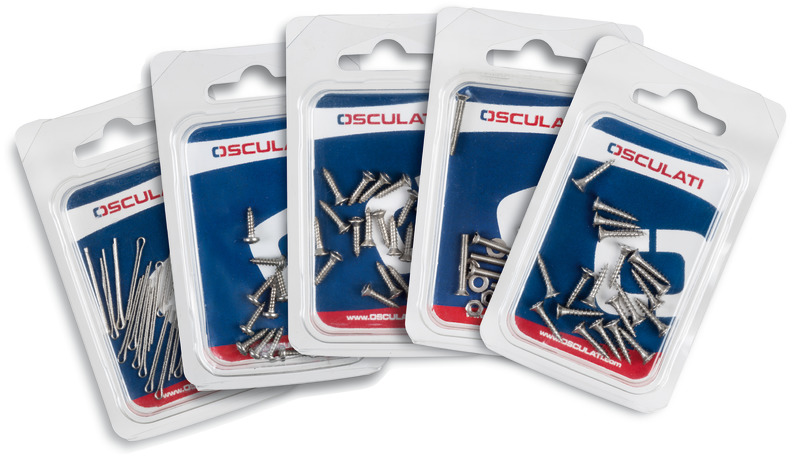

Each variant is supplied in a blister pack containing a specified number of screws, depending on the selected dimensions.

Technical Specifications

Brand	Osculati
Product Series	Fastar
Product Type	Wood / Chipboard Screw
Standard	DIN 7505A
Material	Stainless Steel
Head Type	Flat Countersunk Head
Drive Type	Cross-Recessed
Available Diameters	3, 3.5, 4, 4.5, 5, 6 mm
Available Lengths	15, 20, 25, 30, 40, 45 mm
Pack Quantity	6–20 pcs, depending on size
Packaging	Blister Pack
Number of Variants	6

Features and Applications

Fastar wood and chipboard screw design according to DIN 7505A.
Flat countersunk head for flush installation.
Cross-recessed drive for use with a compatible screwdriver bit.
Threaded shaft for fastening in suitable wood-based materials.
Stainless steel construction for corrosion resistance.
Suitable for chipboard, particleboard, wood panels and compatible fittings.
Available in six dimensional configurations.
Supplied in blister packs with quantities matched to each size.

Available Sizes and Pack Quantities

Diameter	Length	Pack Quantity	Osculati Part No.
3 mm	15 mm	20 pcs	37.054.02
3.5 mm	20 mm	18 pcs	37.054.04
4 mm	25 mm	14 pcs	37.054.08
4.5 mm	30 mm	10 pcs	37.054.10
5 mm	45 mm	8 pcs	37.054.14
6 mm	40 mm	6 pcs	37.054.16

Size Selection

Select the required screw diameter and length according to the thickness and type of material being fastened. Ensure that the mounting surface can accommodate the countersunk head and that the screw provides suitable thread engagement.

Pack quantities are fixed for each size and are specified in the table above.
