Osculati DIN 94 Stainless Steel Split Cotter Pins Ø1.5–4 mm

ID 1402574

$ 5.88

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

15 pcs
20 pcs
7 pcs
4 pcs

Osculati DIN 94 stainless steel split cotter pins are designed for retaining clevis pins, shafts and other compatible mechanical components. Their folded, two-leg construction allows the legs to be bent apart after insertion through a suitable hole, helping prevent accidental withdrawal. These corrosion-resistant retaining pins are available in four sizes from 1.5×25 to 4×50 mm, supplied in blister packs containing 4 to 20 pieces depending on the selected dimensions. Suitable for marine fittings, mechanical assemblies and general maintenance applications.

Description
Ask a Question

Osculati DIN 94 Stainless Steel Split Cotter Pins Ø1.5–4 mm

Osculati DIN 94 split cotter pins are stainless steel retaining fasteners designed to secure compatible mechanical components and prevent unwanted movement or withdrawal. They feature a folded metal construction with a loop at one end and two split legs at the other.

During installation, the cotter pin is inserted through a suitable hole in a clevis pin, shaft, bolt or other compatible component. The protruding legs are then bent apart to retain the pin in position.

Unlike spring-loaded locking pins, DIN 94 split pins use a simple mechanical retaining method without an integrated spring mechanism. They are generally replaced after removal rather than repeatedly straightened and reused.

The stainless steel construction provides corrosion resistance for suitable marine, outdoor and general mechanical applications. The range includes four dimensional configurations with nominal diameters from 1.5 to 4 mm and lengths from 25 to 50 mm.

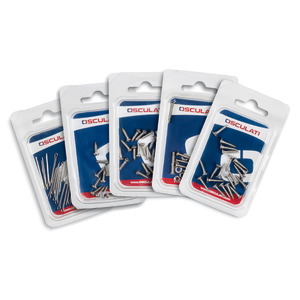

Each size is supplied in a blister pack containing a specified number of split pins.

Technical Specifications

Brand	Osculati
Product Type	Split Cotter Pin
Standard	DIN 94
Material	Stainless Steel
Design	Folded Pin with Two Bendable Legs
Available Diameters	1.5, 2, 3, 4 mm
Available Lengths	25, 35, 40, 50 mm
Pack Quantity	4–20 pcs, depending on size
Packaging	Blister Pack
Number of Variants	4

Features and Applications

DIN 94 split pin construction.
Stainless steel material for corrosion resistance.
Two bendable legs for mechanical retention after installation.
Suitable for compatible clevis pins, shafts and fastening assemblies.
Helps prevent accidental withdrawal of retained components.
Available in four diameters and lengths.
Supplied in blister packs with quantities depending on size.

Available Sizes and Pack Quantities

Diameter	Length	Pack Quantity	Osculati Part No.
1.5 mm	25 mm	20 pcs	37.055.01
2 mm	35 mm	15 pcs	37.055.02
3 mm	40 mm	7 pcs	37.055.04
4 mm	50 mm	4 pcs	37.055.06

Size Selection

Select the required nominal pin diameter to suit the mounting hole, then choose the appropriate length to allow the split legs to extend through the connection and be bent securely after insertion.

The available dimensions and blister quantities are fixed for each Osculati part number.
